Mount an onboard battery charger in a dry, ventilated area that’s easily accessible for maintenance. Common locations include storage compartments or near the battery itself. Ensure it’s secured and away from excessive heat or moisture for optimal performance.
Installing an onboard battery charger is essential for maintaining the health and longevity of your batteries, especially in marine, RV, and automotive applications. Proper placement can enhance performance, safety, and accessibility. In this article, we will provide expert tips on where to mount an onboard battery charger to ensure optimal operation.
Understanding Onboard Battery Chargers

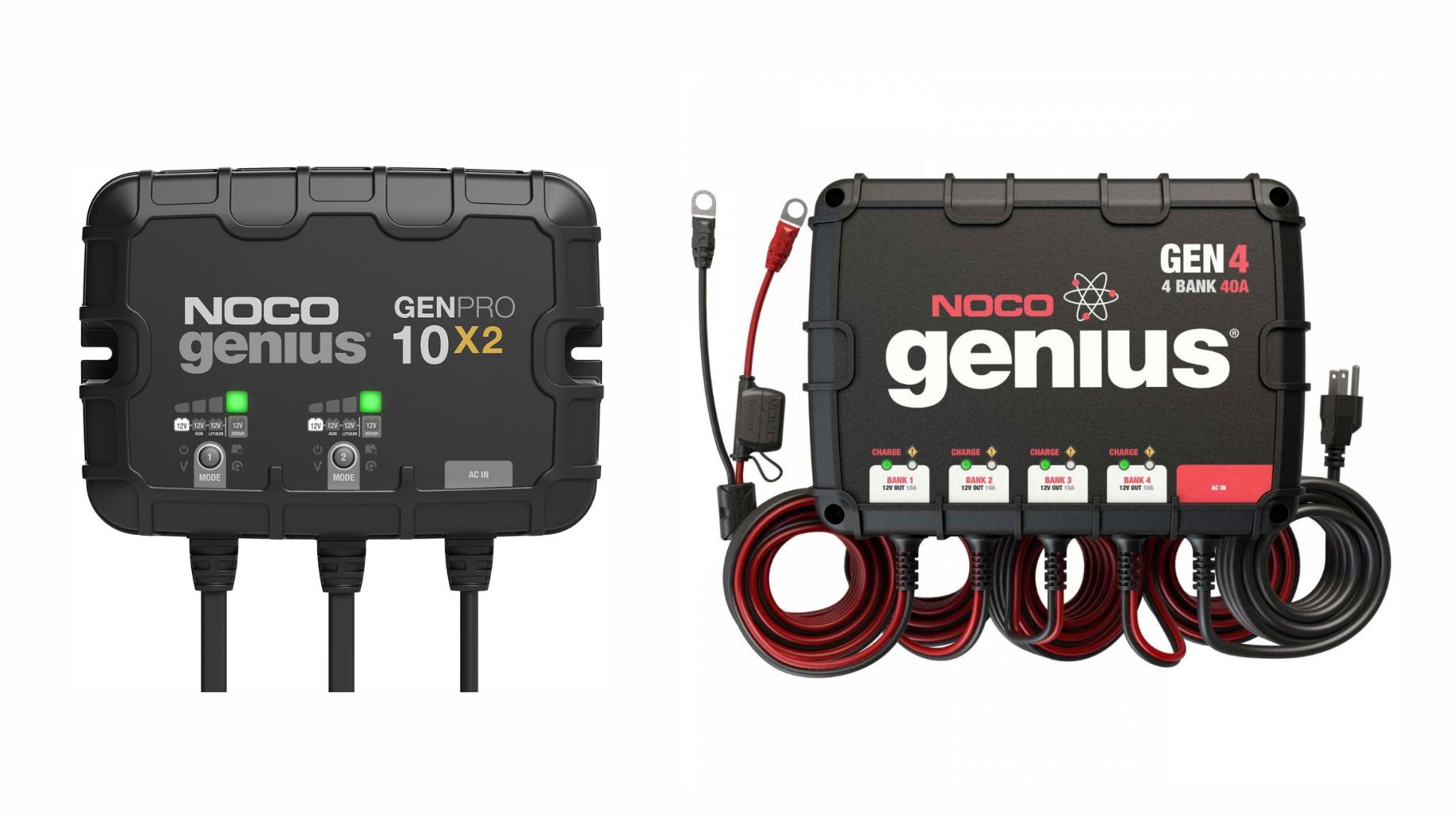

An onboard battery charger is a device designed to charge batteries while they are installed in a vehicle or vessel. These chargers are particularly useful for:
- Marine Applications: Keeping boat batteries charged for reliable starting and powering onboard electronics.
- RV Use: Ensuring that the house batteries remain charged during trips or when parked.
- Automotive: Maintaining the health of batteries in cars, trucks, and other vehicles.
Key Features of Onboard Battery Chargers
- Multi-Bank Charging: Many onboard chargers can charge multiple battery banks simultaneously.
- Smart Charging Technology: These chargers often feature advanced algorithms that adjust charging rates based on battery condition.
- Waterproof and Durable Design: Especially important for marine applications to withstand harsh environments.
Choosing the Right Location for Mounting
1. Proximity to Batteries
When selecting a mounting location for your onboard battery charger, consider its proximity to the batteries it will charge. Ideally, the charger should be mounted as close as possible to the battery bank to minimize voltage drop and ensure efficient charging.
2. Ventilation Requirements
Onboard chargers generate heat during operation. Therefore, it’s crucial to mount them in a well-ventilated area. Avoid enclosed spaces where heat can build up, as excessive temperatures can damage both the charger and the batteries.
3. Accessibility for Maintenance
Choose a location that allows easy access for maintenance and inspection. Regular checks are necessary to ensure that connections are secure and that the charger is functioning correctly.
4. Protection from Water and Debris
For marine applications, it’s vital to mount the charger in a location that protects it from water splashes, humidity, and debris. Consider using waterproof enclosures or mounting it above potential water levels.
Recommended Mounting Locations
1. Engine Compartment
In many boats and RVs, the engine compartment is a suitable location for mounting an onboard battery charger. This area often has good ventilation and is close to the battery bank. However, ensure that the charger is not exposed to excessive heat from the engine.
2. Battery Compartment
If your vehicle or vessel has a dedicated battery compartment, this is often the best choice for mounting an onboard charger. Ensure that there is sufficient airflow around the charger and that it is secured firmly to avoid movement during operation.
3. Under Deck or Cabin Area
In some cases, mounting the charger under a deck or in a cabin area can provide protection from environmental elements while still allowing for adequate airflow. Ensure that this area remains dry and free from moisture buildup.
4. Wall Mounting Options
For RVs or larger vehicles, consider wall mounting the charger inside storage compartments or utility areas. This keeps the charger secure while providing easy access for monitoring and adjustments.
Installation Tips for Onboard Battery Chargers
1. Use Quality Mounting Hardware
Always use high-quality screws and brackets designed for marine or automotive applications. Corrosion-resistant materials are essential in environments exposed to moisture.
2. Follow Manufacturer Guidelines
Refer to the manufacturer’s installation instructions for specific recommendations regarding wiring, mounting angles, and ventilation requirements.
3. Ensure Proper Wiring Connections
Use appropriately sized wire gauges based on your charger’s specifications to prevent overheating and voltage drop. Secure all connections with heat-shrink tubing or electrical tape to protect against corrosion.
4. Test Before Finalizing Installation
Before permanently securing your charger, connect it temporarily to ensure proper functionality. Check all connections and confirm that it charges your batteries as expected.
Data Chart: Comparison of Mounting Locations for Onboard Chargers
| Location | Pros | Cons |
|---|---|---|
| Engine Compartment | Close proximity to batteries; good ventilation | Potential heat exposure |
| Battery Compartment | Ideal protection; easy access | Limited airflow if poorly designed |
| Under Deck/Cabin Area | Protection from elements; secure | Possible moisture buildup |
| Wall Mounting | Easy access; saves space | May require longer wiring runs |
Latest News on Battery Charging Technology
Recent advancements in onboard charging technology include:
- The development of faster charging systems that reduce downtime between uses.
- Innovations in smart charging algorithms that optimize power delivery based on battery condition.
- Enhanced safety features such as over-temperature protection and short-circuit prevention mechanisms.
Conclusion
In conclusion, selecting the right location for mounting an onboard battery charger is crucial for ensuring efficient operation and longevity of both the charger and your batteries. By considering factors such as proximity to batteries, ventilation requirements, accessibility, and protection from environmental elements, you can achieve optimal performance from your onboard charging system. Following these expert installation tips will help you maintain your devices effectively while enjoying reliable power wherever you go.
FAQs
Q1: Can I install an onboard battery charger myself?
A1: Yes, if you have basic electrical knowledge and tools, you can install it yourself by following manufacturer guidelines.
Q2: How do I know if my charger is functioning properly?
A2: Regularly check indicator lights on the charger and monitor battery voltage levels with a multimeter.
Q3: What should I do if my onboard charger overheats?
A3: Disconnect it immediately and allow it to cool down. Check ventilation and ensure all connections are secure before reconnecting.
What are the best practices for installing an onboard battery charger?
Ensure the charger is mounted securely in a dry, well-ventilated location, away from heat sources. Use the correct gauge of wire, ensure solid connections, and follow the manufacturer’s instructions. Choose a charger that matches the battery chemistry and voltage.
How do you ensure proper ventilation when mounting an onboard battery charger?
Mount the charger in a location with good airflow, leaving adequate space around it for ventilation. Avoid enclosed areas or locations exposed to excessive heat. Proper ventilation prevents overheating and ensures optimal charger performance.
What are the common challenges faced during the installation of an onboard battery charger?
Common challenges include finding a suitable mounting location, ensuring correct wiring and connections, managing space constraints, and dealing with compatibility issues between the charger and the battery system.
How can you optimize the performance of an onboard battery charger?
Use a charger designed for your specific battery type, avoid overloading the charger, and ensure it’s mounted in a cool, well-ventilated area. Regularly inspect the wiring and connections for corrosion, and keep the battery terminals clean to maintain efficiency.
What safety precautions should be taken when installing an onboard battery charger?
Disconnect the battery before installation, avoid working near water or moisture, and ensure all connections are secure. Use appropriate protective gear, such as gloves and safety glasses, and follow the manufacturer’s safety guidelines to prevent electrical hazards.
