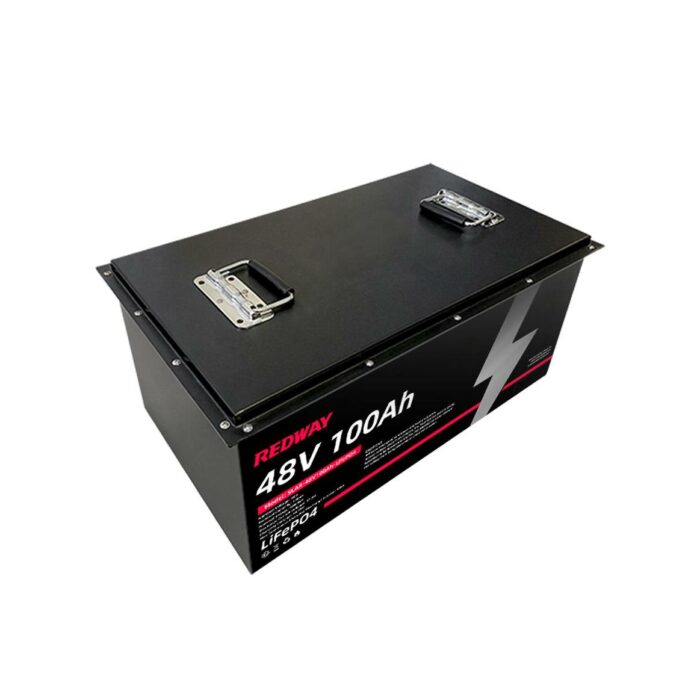

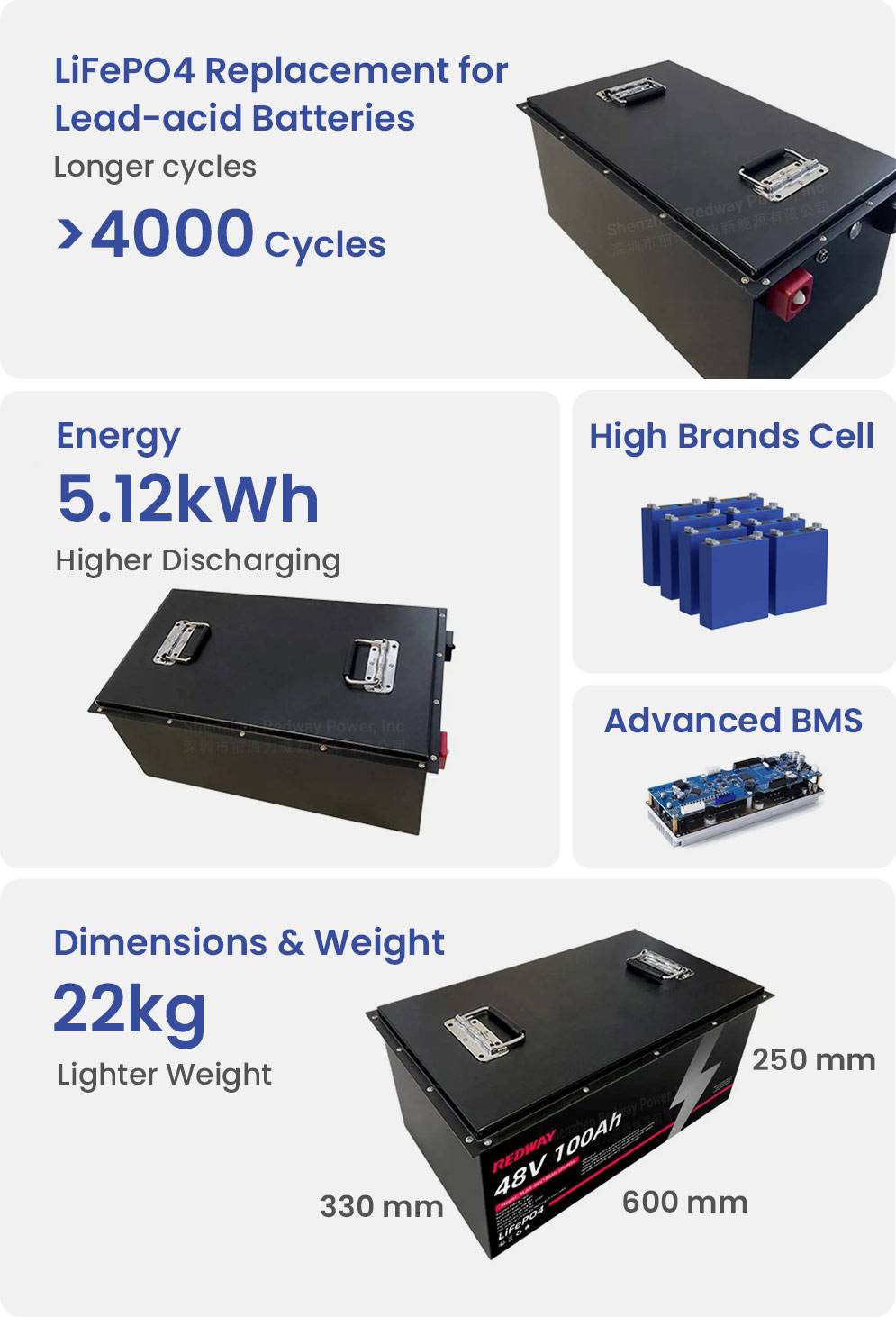

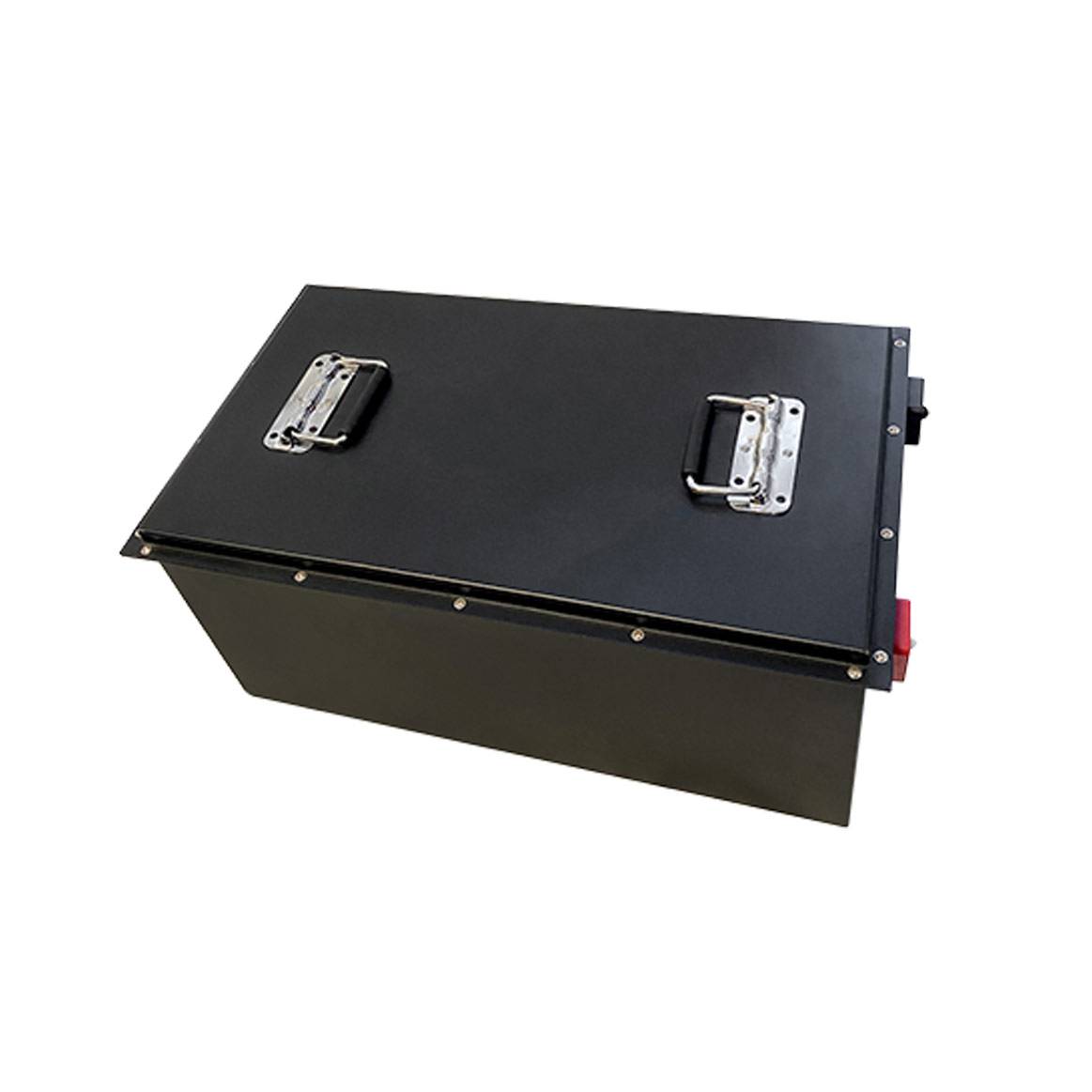

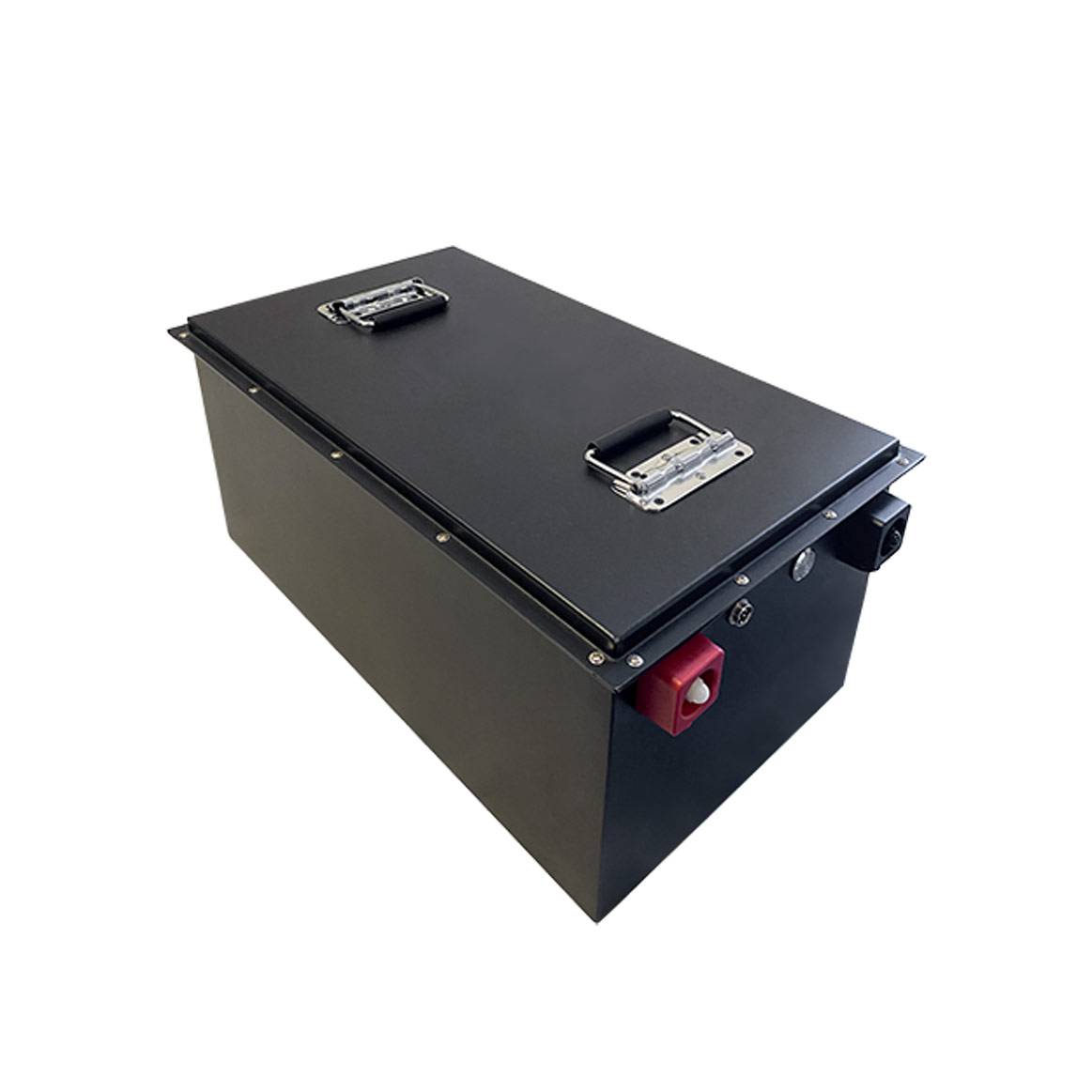

Experience exceptional power and reliability with our 48V 100Ah LiFePO4 battery, engineered for superior performance in a wide range of electric vehicles. This high-capacity battery delivers 5120 Wh of energy, providing a driving range of up to 80 km (50 miles) on a full charge. Designed with advanced LiFePO4 technology, it ensures enhanced safety, long life, and robust performance even under demanding conditions.
Built for versatility, our battery fits seamlessly into golf carts, electric scooters, and various low-speed vehicles. With its durable metal shell and advanced BMS protection, it offers optimal safety and longevity. Ideal for both personal and commercial applications, this battery is backed by a 5-year warranty and designed for a lifespan of up to 10 years.
Top 5 Selling Points
High Capacity & Range: Provides 5120 Wh of energy with a driving range of 64-80 km, ideal for extended use in various electric vehicles.
Advanced Safety Features: Equipped with an advanced BMS system for over-current, over-charge, over-discharge, and thermal protection.
Durable & Reliable: Metal shell construction and IP67 rating ensure durability and resistance to environmental factors.
Versatile Applications: Perfect for golf carts, electric scooters, tricycles, and other low-speed vehicles.
Long Lifespan & Warranty: Offers over 6,000 cycles at 80% DOD and comes with a 5-year warranty for peace of mind.
Contact Now
For B2B, wholesale, or OEM inquiries, please reach out to us to discuss how our 48V 100Ah LiFePO4 battery can meet your needs. Contact Now to get started on your order or to request more information!
SPECS
Cell Type
LiFePO4 (LFP)
CATL / EVE / BYD / Samsung SDI / Gotion / SVOLT / LISHEN / REPT / ANC
Nominal Voltage
51.2V
Nominal Capacity
100Ah
Nominal Energy
5120 Wh (5.12 KWh)
Full Charge Driving Range
64 ~ 80 km
40 ~ 50 miles
Dimensions [L x W x H]
500 x 342 x 255 mm
19.7 x 13.4 x 10 inches
Weight
59 kg
130 lb
Max Charge Voltage
58.4V
Max Cut-off Discharge Voltage
40V
Max Continuous Charge Current
100A
Max Continuous Discharge Current
100A
Peak Discharge Current
300A (20s)
Internal Resistance
<10 mΩ
Charge Temperature
0°C ~ 60°C
Discharge Temperature
-20°C ~ 65°C
Max Series Connection
-
Max Parallel Connection
4
Cycle Life
>6,000 Cycles (80% DOD)
>15,000 cycles (60% DOD)
Self-Discharg
<2% per month
IP Rating
IP67
Usage Locations
Golf Carts, Club Car, Sightseeing Car, LSV Car, 2 Wheels / 3 Wheels / 4 Wheels Electric Scooter, Electric Trishaw, Electric Rickshaw, Electric Motorcycle, Electric Tricycle, Cabin Car, Electric Cargo Tricycle, Cargo Express Cargo Car, AGV, AMR, LGV (Laser Guided Vehicle), Floor Scrubber, Floor Clean Machine, Floor Polisher, Robot, etc.
Battery Shell
Metal
BMS Protection
JBD / DALY / DAREN / Advanced Smart BMS:
Cell Automatic Balance, Over Current, Over Charge, Over Discharge, Overload, Over Voltage, Low Voltage, Short Circuit, Over Temperature, Low Temperature, etc.
Communication
UART / RS485 / CAN-bus
Optional Upgrades
Self-Heating, Fast Charger, Bluetooth, APP, WiFi, 4G, GPS, RS485, RS232, CAN-bus, Modbus, TCP/IP, Active Balance, LCD Screen, Solar Panel, Solar Controllers, MPPT, Inverters, LED Indicator Light, TACP, Fan, Heatsink, Circuit Breaker, Anti-Theft, etc.
Vent
Yes
Power Switch
Yes
Terminals
M8
Communication Interface
Aviation Connector Socket
Charger (Optional)
Anderson Connector (Optional)
Aviation Connector (Optional)
Bluetooth APP Demo (Android / iOS)
Design Life
10 Years
Warranty
5 Years
User Manual
Yes
Silkscreen
Yes
Label Design / Printing
Yes
Laser Logo
Yes
Certifications
UN38.3 / UN3480 / MSDS / UL 1642 (Cells) / IEC 62133 (Cells) / ISO 9001 (Factory)
Redway Lithium Battery Pack Factory
FAQs
What is the nominal voltage of the 48V 100Ah LiFePO4 battery?
The nominal voltage is 51.2V.
What is the maximum driving range on a full charge?
The battery provides a driving range of 64 to 80 km (40 to 50 miles).
How many cycles can the battery last?
The battery has a cycle life of over 6,000 cycles at 80% depth of discharge (DOD) and over 15,000 cycles at 60% DOD.
What are the operating temperature ranges for charging and discharging?
The charging temperature range is 0°C to 60°C, and the discharging temperature range is -20°C to 65°C.
How much does the battery weigh?
The battery weighs 59 kg (130 lb).
What is the maximum continuous charge and discharge current?
The maximum continuous charge and discharge current is 100A each.
Does the battery come with a warranty?
Yes, the battery comes with a 5-year warranty.
What are the optional upgrades available for this battery?
Optional upgrades include self-heating, fast charger, Bluetooth, GPS, and various communication interfaces.
Is the battery protected against environmental factors?
Yes, the battery has an IP67 rating, making it resistant to dust and water ingress.
What certifications does the battery have?
The battery is certified with UN38.3, UN3480, MSDS, UL 1642, IEC 62133, and ISO 9001 standards.
What safety features are included in the BMS?
The BMS includes automatic cell balancing, overcurrent, overcharge, over-discharge, overload, over-voltage, low-voltage, short-circuit, and temperature protections.
FAQs
How long does a 48V 100Ah lithium battery last?
A 48V 100Ah lithium battery can last between 2,000 to 5,000 charge cycles, translating to approximately 8 to 15 years with proper care. Factors such as depth of discharge and charging habits significantly influence its lifespan, making regular maintenance essential for maximizing longevity.
How long does a 48V 100Ah lithium-ion battery last?
A 48V 100Ah lithium-ion battery typically lasts around 8 to 15 years, depending on usage and maintenance. With proper care, including avoiding deep discharges and ensuring optimal charging conditions, these batteries can provide reliable performance for many years.
How long does a 48V lithium-ion battery last for a golf cart?
For golf carts, a 48V lithium-ion battery usually lasts between 8 to 10 years. This lifespan can vary based on usage patterns and maintenance practices. Regular charging and avoiding complete discharges can help extend the battery's longevity.
How many lithium batteries do I need for a 48V golf cart?
To achieve a 48V system in a golf cart, you typically need four 12V lithium batteries connected in series. Alternatively, you could use two 24V batteries or one single unit rated at 48V, depending on your specific setup and power requirements.
How long will a 100Ah lithium battery last in a golf cart?
A 100Ah lithium battery in a golf cart can provide around 25 to 50 miles on a full charge, depending on factors like terrain and load. With proper maintenance, this battery can last approximately 8 to 10 years, offering reliable performance throughout its lifespan.
Is it worth converting a golf cart to lithium batteries?
Converting a golf cart to lithium batteries is often worth it due to their longer lifespan, lighter weight, and better performance compared to lead-acid batteries. Although the initial investment is higher, the reduced maintenance and increased efficiency can lead to significant savings over time.
Should I leave my lithium golf cart plugged in all the time?
It’s generally not recommended to leave your lithium golf cart plugged in continuously. While some manufacturers suggest keeping it plugged in during extended storage for optimal charge maintenance, others advise unplugging it to prevent overcharging. Always follow the manufacturer's guidelines for best practices.
What are the disadvantages of lithium golf cart batteries?
Disadvantages of lithium golf cart batteries include higher initial costs compared to lead-acid options and sensitivity to extreme temperatures. Additionally, they may require specialized chargers and management systems for optimal performance. However, their long lifespan often outweighs these drawbacks.
How far will a 48-volt golf cart go on a full charge?
A fully charged 48-volt golf cart typically travels between 25 to 50 miles on a single charge. This range can vary based on factors such as terrain, weight load, and driving style. Lithium batteries generally offer better range than traditional lead-acid batteries.
How long will a 48V 100Ah battery last?
A 48V 100Ah battery can provide power for several hours of continuous use, depending on the load. For example, at a constant draw of about 20 amps, it would last approximately five hours before needing recharging. Actual duration will vary based on usage conditions.
How long does it take to charge a 100Ah lithium battery?
Charging a 100Ah lithium battery typically takes about 4 to 8 hours using an appropriate charger. The exact time depends on the charger's output current and the battery's state of charge when starting. Always use the manufacturer's recommended charger for optimal results.
How many solar panels do I need to charge a 48V lithium battery?
To charge a 48V lithium battery effectively using solar panels, you typically need about two to four panels rated at around 300W each. This setup should provide sufficient energy under optimal sunlight conditions. Battery capacity and daily usage will also influence the number of panels required.
What is the mileage of a 48V 100Ah lithium-ion battery?
The mileage of a vehicle powered by a 48V 100Ah lithium-ion battery generally ranges from about 25 to 50 miles per full charge. Factors such as terrain type, weight load, and driving habits can affect this range significantly.
How long does it take to charge a 48V 100Ah lithium battery?
Charging a 48V 100Ah lithium battery usually takes between 4 to 8 hours with an appropriate charger. The actual charging time may vary based on the charger's output current and the initial state of charge of the battery.
When should I charge my 48V lithium battery?
You should charge your 48V lithium battery after each use or when it reaches about 20% state of charge. Avoid letting it discharge completely, as this can reduce its lifespan. Regular charging helps maintain optimal performance and longevity.
