The 48V 100Ah LiFePO4 Golf Cart Battery Model S51105P is engineered for superior performance and reliability, making it an ideal choice for a wide range of electric vehicles and applications. With a nominal capacity of 100Ah and an energy output of 5.12 KWh, this battery ensures extended operational time and robust performance, supporting driving ranges between 64 to 80 km (40 to 50 miles) on a single charge. Designed to withstand varying environmental conditions, it operates efficiently across temperatures from -20°C to 65°C, and its IP67 rating guarantees protection against dust and water.
This advanced battery incorporates top-tier LiFePO4 cells from leading manufacturers such as CATL, BYD, and Samsung SDI, ensuring long-lasting durability and safety. With over 6,000 charge cycles at 80% depth of discharge and a self-discharge rate below 2% per month, the Model S51105P is built for extended use and minimal maintenance. Optional upgrades including Bluetooth connectivity, solar panel integration, and advanced BMS protection systems provide added functionality to meet diverse business needs.
Top 5 Selling Points
Extended Lifespan: Over 6,000 cycles at 80% depth of discharge and over 15,000 cycles at 60% DOD.
High Capacity: 100Ah capacity with a nominal energy of 5.12 KWh, supporting long operational ranges of up to 80 km.
Durability: Operates reliably in extreme temperatures from -20°C to 65°C and is protected by an IP67 rating.
Versatile Applications: Ideal for golf carts, electric scooters, low-speed vehicles, and more, with optional features for customization.
Safety Features: Advanced BMS protection against overcharge, over-discharge, short circuits, and more, ensuring reliable operation.
Contact Now
For B2B, wholesale, or OEM inquiries, contact us now to discuss your requirements and explore how the 48V 100Ah LiFePO4 Golf Cart Battery Model S51105P can enhance your product offerings. Our team is ready to provide tailored solutions and competitive pricing to meet your needs.
SPECS
Model
S51105P
Cell Type
LiFePO4 (LFP)
CATL / EVE / BYD / Samsung SDI / Gotion / SVOLT / LISHEN / REPT / ANC
Nominal Voltage
51.2V
Nominal Capacity
100Ah
Nominal Energy
5120 Wh (5.12 KWh)
Full Charge Driving Range
64 ~ 80 km
40 ~ 50 miles
Dimensions [L x W x H]
565 x 330 x 255 mm
22.2 x 13 x 10 inches
Weight
46.5 kg
102.5 lb
Max Charge Voltage
58.4V
Max Cut-off Discharge Voltage
40V
Standard Charge Current
22A (Fully charged in 5 hours)
Max Continuous Charge Current
150A
Max Continuous Discharge Current
150A
Peak Discharge Current
315A (30s)
Internal Resistance
<10 mΩ
Charge Temperature
0°C ~ 60°C
Discharge Temperature
-20°C ~ 65°C
Max Series Connection
-
Max Parallel Connection
4
Cycle Life
>6,000 Cycles (80% DOD)
>15,000 cycles (60% DOD)
Self-Discharg
<2% per month
IP Rating
IP67
Usage Locations
Golf Carts, Club Car, Sightseeing Car, LSV Car, 2 Wheels / 3 Wheels / 4 Wheels Electric Scooter, Electric Trishaw, Electric Rickshaw, Electric Motorcycle, Electric Tricycle, Cabin Car, Electric Cargo Tricycle, Cargo Express Cargo Car, AGV, AMR, LGV (Laser Guided Vehicle), Floor Scrubber, Floor Clean Machine, Floor Polisher, Robot, etc.
Battery Shell
Metal
BMS Protection
JBD / DALY / DAREN / Advanced Smart BMS:
Cell Automatic Balance, Over Current, Over Charge, Over Discharge, Overload, Over Voltage, Low Voltage, Short Circuit, Over Temperature, Low Temperature, etc.
Optional Upgrades
Self-Heating, Fast Charger, Bluetooth, APP, WiFi, 4G, GPS, RS485, RS232, CAN-bus, Modbus, TCP/IP, Active Balance, LCD Screen, Solar Panel, Solar Controllers, MPPT, Inverters, LED Indicator Light, TACP, Fan, Heatsink, Circuit Breaker, Anti-Theft, etc.

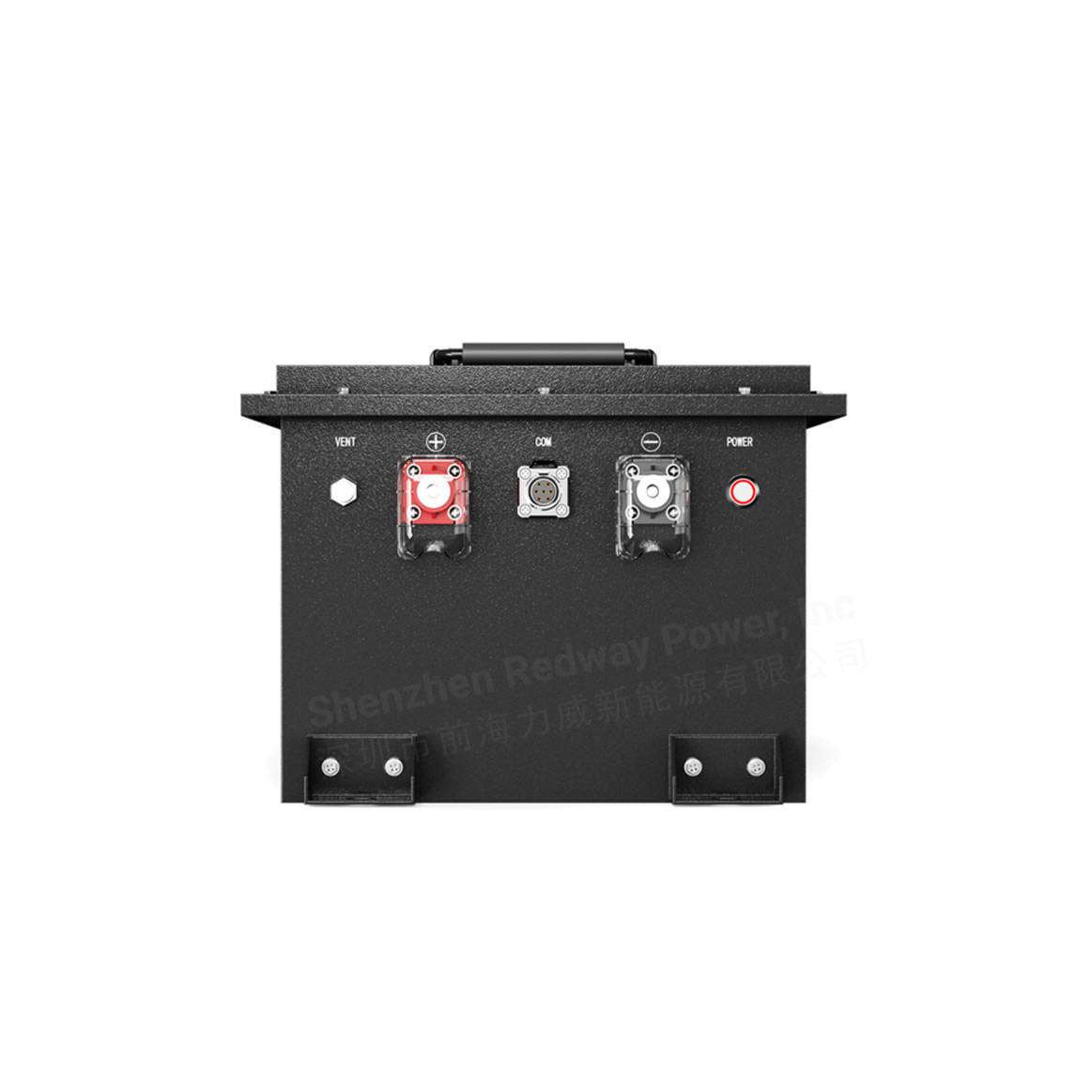

Vent
Yes
Power Switch
Yes
Terminals
M8
Communication Interface
Aviation Connector Socket
Charger (Optional)
Anderson Connector (Optional)
Aviation Connector (Optional)
Bluetooth APP Demo (Android / iOS)
Design Life
10 Years
Warranty
5 Years
User Manual
Yes
Silkscreen
Yes
Label Design / Printing
Yes
Laser Logo
Yes
Certifications
UN38.3 / UN3480 / MSDS / UL 1642 (Cells) / IEC 62133 (Cells) / ISO 9001 (Factory)
Redway Lithium Battery Pack Factory
FAQs
What is the nominal voltage of the 48V 100Ah LiFePO4 Golf Cart Battery Model S51105P?
The nominal voltage is 51.2V.
What is the maximum continuous discharge current for this battery?
The maximum continuous discharge current is 150A.
How long does it take to fully charge the battery?
The standard charge current of 22A allows the battery to be fully charged in approximately 5 hours.
What is the weight and size of the battery?
The battery weighs 46.5 kg (102.5 lb) and has dimensions of 565 x 330 x 255 mm (22.2 x 13 x 10 inches).
Can this battery be used in extreme temperatures?
Yes, it operates within a temperature range of -20°C to 65°C for discharge and 0°C to 60°C for charge.
What is the cycle life of this battery?
The battery offers over 6,000 cycles at 80% depth of discharge and over 15,000 cycles at 60% depth of discharge.
What are the optional upgrades available for this battery?
Optional upgrades include self-heating, fast charging, Bluetooth, solar panel integration, and more.
Is the battery protected against water and dust?
Yes, it has an IP67 rating, which means it is dust tight and protected against immersion in water.
What is the warranty period for this battery?
The battery comes with a 5-year warranty.
Does this battery have any safety features?
Yes, it includes an advanced BMS with protection against overcurrent, overcharge, over-discharge, short circuits, and more.
FAQs
How long will a 100Ah lithium battery last in a golf cart?
A 100Ah lithium battery in a golf cart can last approximately 4-8 hours, depending on the load and driving conditions. If the cart uses around 200-300 watts, you can estimate runtime based on battery capacity and energy consumption.
How fast can you charge a 100Ah LiFePO4 battery?
You can charge a 100Ah LiFePO4 battery at rates up to 1C (100A), meaning it could fully charge in about 1 hour. However, charging at a slower rate (e.g., 0.5C) is recommended for battery longevity.
How long does it take to charge a 48V 100Ah lithium battery?
Charging a 48V 100Ah lithium battery typically takes 4-8 hours, depending on the charger’s output and the charging method used. A standard 10A charger would take about 10 hours for a full charge.
What is the minimum voltage for a 48V LiFePO4 battery?
The minimum voltage for a 48V LiFePO4 battery is around 40V. Discharging below this voltage can lead to battery damage and reduced lifespan.
What is the cut-off voltage for a 48V lithium battery?
The cut-off voltage for a 48V lithium battery is typically around 44V. This prevents over-discharge, which can harm the battery's performance and longevity.
What voltage should a 48V lithium battery be charged at?
A 48V lithium battery should be charged to about 54.4V (fully charged). This ensures optimal performance and longevity while maintaining the battery's health.
How many hours does a 48V 100Ah battery last?
A 48V 100Ah battery can last approximately 4-8 hours, depending on the wattage of the connected devices. For example, with a 500W load, it would last around 9.6 hours.
How many solar panels do I need to charge a 48V lithium battery?
To charge a 48V lithium battery, you typically need about 600-800 watts of solar panels. This can be achieved with two to four 300W panels, depending on sunlight availability.
How many kW is a 48V 100Ah battery?
A 48V 100Ah battery has a capacity of 4.8 kilowatt-hours (kWh), calculated by multiplying the voltage (48V) by the amp-hour rating (100Ah).
Is it better to charge LiFePO4 fast or slow?
Charging LiFePO4 batteries slowly is generally better for longevity, as it reduces stress and heat buildup. Fast charging is acceptable but should be limited to avoid long-term degradation.
Is slow charging better for an LFP battery?
Yes, slow charging is beneficial for LiFePO4 (LFP) batteries. It extends their lifespan by minimizing heat generation and promoting efficient charging cycles.
Is it okay to leave a LiFePO4 battery on the charger?
Yes, it is generally safe to leave a LiFePO4 battery on the charger, as they have built-in Battery Management Systems (BMS) that prevent overcharging.
Should I leave my lithium golf cart plugged in all the time?
Leaving your lithium golf cart plugged in continuously is not necessary. However, keeping it plugged in for maintenance charging is acceptable if done with a compatible charger.
How many hours do 48-volt golf cart batteries last?
48-volt golf cart batteries typically last around 4-8 hours of use, depending on capacity, terrain, and driving style. Efficiency can vary based on load conditions.
Is a higher Ah battery better in a golf cart?
A higher Ah battery provides more energy storage, leading to longer run times between charges. However, it’s essential to balance capacity with weight and cost for optimal performance.
