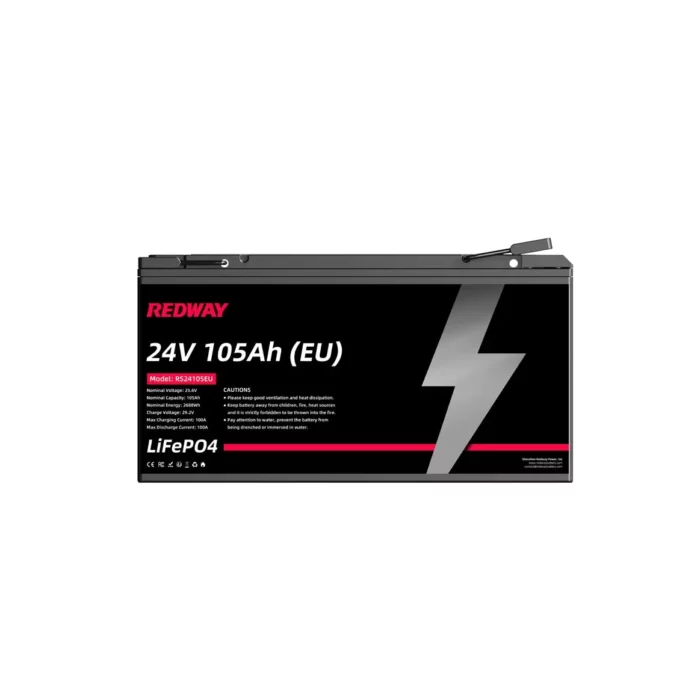

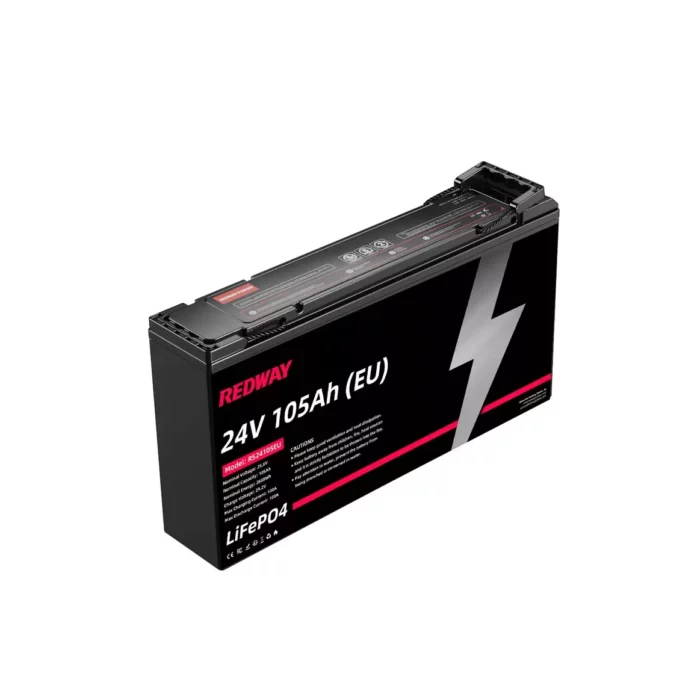

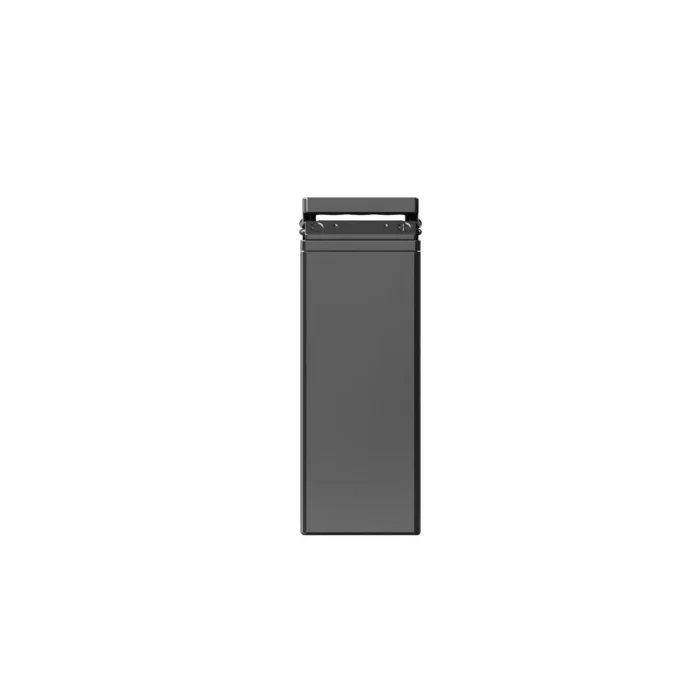

Introducing the 24V 100A Lithium Battery, a cutting-edge energy storage solution designed for high-performance and reliability. Utilizing LiFePO4 (LFP) technology, this battery offers outstanding safety, longevity, and efficiency, making it ideal for a wide range of applications including RVs, marine vessels, off-grid living, and backup power systems. With a nominal capacity of 100Ah and energy density of 2.56 kWh, it ensures a dependable power supply for your most demanding needs.
The 24V 100A Lithium Battery excels in diverse environments, operating within a broad temperature range from -20°C to 65°C. It supports multiple parallel connections and boasts a cycle life of over 6,000 cycles at 80% depth of discharge (DOD), guaranteeing long-term performance and minimal maintenance. With advanced BMS protection and various optional upgrades, including Bluetooth and solar panel compatibility, it offers both flexibility and enhanced functionality.
Top 5 Selling Points
High Capacity and Energy Density: Delivers 2.56 kWh of power in a compact, lightweight design.
Long Cycle Life: Over 6,000 cycles at 80% DOD and more than 15,000 cycles at 60% DOD for exceptional longevity.
Wide Temperature Range: Reliable operation from -20°C to 65°C, suitable for diverse environments.
Advanced Safety Features: Includes comprehensive BMS protection for over-current, over-charge, and more.
Versatile Applications: Perfect for RVs, marine use, off-grid systems, and emergency backup power.
Contact Now
For B2B, wholesale, or OEM inquiries, contact us today to discuss how the 24V 100A/105Ah Lithium Battery can enhance your energy storage solutions. Our team is ready to provide tailored solutions to meet your specific needs.
SPECS
Cell Type
LiFePO4 (LFP)
CATL / EVE / BYD / Samsung SDI / Gotion / SVOLT / LISHEN / REPT / ANC
Nominal Voltage
25.6V
Nominal Capacity
100Ah
Nominal Energy
2560 Wh (2.56 KWh)
Dimensions [L x W x H]
552 x 110 x 288 mm
21.7 x 4.3 x 11.3 inches
Weight
21 kg
46.3 lb
Max Charge Voltage
29.2V
Max Cut-off Discharge Voltage
20V
Max Continuous Charge Current
100A
Max Continuous Discharge Current
100A
Peak Discharge Current
110A (10s) / 280A (5s) / 300A (3s)
Internal Resistance
<10 mΩ
Charge Temperature
0°C ~ 60°C
Discharge Temperature
-20°C ~ 65°C
Max Series Connection
-
Max Parallel Connection
4
Cycle Life
>6,000 Cycles (80% DOD)
>15,000 cycles (60% DOD)
Self-Discharg
<2% per month
IP Rating
IP65
Usage Locations
RVs, Motorhome, Trailer, Van, Marine Boat, Fishing Boat, Yacht, Trolling Motor, UPS, Backup Power Supply, Off-Grid Living, Off-Grid Devices, Hybrid Lifestyle, Solar ESS System, HESS, Home ESS, Outdoor Living, Camping, LED Lighting, Security Camera Power Supply Box, Surveillance System, Emergency System, etc.
Battery Shell
ABS Plastic
BMS Protection
JBD / DALY / DAREN / Advanced Smart BMS:
Cell Automatic Balance, Over Current, Over Charge, Over Discharge, Overload, Over Voltage, Low Voltage, Short Circuit, Over Temperature, Low Temperature, etc.
Optional Upgrades
Self-Heating, Fast Charger, Bluetooth, APP, WiFi, 4G, GPS, RS485, RS232, CAN-bus, Modbus, TCP/IP, Active Balance, LCD Screen, LED Indicator Light, Solar Panel, Solar Controllers, MPPT, Inverters, TACP, Fan, Heatsink, Circuit Breaker, Switch, Anti-Theft, etc.
Terminals
M8 / T8~T20
Charger (Optional)
Anderson Connector (Optional)
Aviation Connector (Optional)
Bluetooth APP Demo (Android / iOS)
Design Life
10 Years
Warranty
3 Years
User Manual
Yes
Silkscreen
Yes
Label Design / Printing
Yes
Laser Logo
Yes
Certifications
UN38.3 / UN3480 / MSDS / UL 1642 (Cells) / IEC 62133 (Cells) / ISO 9001 (Factory)
Redway Lithium Battery Pack Factory
FAQs
What is the nominal capacity of the 24V 105Ah Lithium Battery?
The nominal capacity is 100Ah.
What technology does this battery use?
It utilizes LiFePO4 (LFP) technology for superior safety and longevity.
What is the cycle life of this battery?
It offers over 6,000 cycles at 80% depth of discharge (DOD) and over 15,000 cycles at 60% DOD.
How much does the 24V 105Ah Lithium Battery weigh?
The battery weighs 21 kg (46.3 lb).
Can this battery be used for marine applications?
Yes, it is suitable for marine use, including boats and yachts.
What is the maximum continuous charge and discharge current?
The maximum continuous charge and discharge current is 100A each.
Does the battery come with a warranty?
Yes, it includes a 3-year warranty.
Is there an optional self-heating feature?
Yes, self-heating is one of the optional upgrades available.
What certifications does this battery have?
It is certified with UN38.3, UL 1642 (Cells), IEC 62133 (Cells), and ISO 9001 (Factory).
What are the operating temperature ranges for charging and discharging?
It can charge in temperatures from 0°C to 60°C and discharge from -20°C to 65°C.
How can customers get assistance in finding the right batteries?
Customers can get assistance by contacting the manufacturer through their website or customer service. They can discuss their specific requirements and applications to receive personalized recommendations for the appropriate battery solutions.
What types of lithium battery chargers are available as accessories?
Lithium battery chargers available as accessories include standard AC chargers, smart chargers with multi-stage charging capabilities, and solar chargers for off-grid applications. Specific models may vary by manufacturer.
What is the storage temperature range for the 24V 105Ah lithium battery?
The storage temperature range for the 24V 105Ah lithium battery is typically from -20°C to 65°C, ensuring safe storage across various environmental conditions.
What is the standard charge current for the 24V 105Ah lithium floor machine battery?
The standard charge current for the 24V 105Ah lithium battery is generally between 21A to 52.5A, which corresponds to 0.2C to 0.5C of the battery’s capacity. Specific recommendations may vary by manufacturer.
What is the discharge cut-off voltage for the 24V 105Ah lithium floor machine battery?
The discharge cut-off voltage for the 24V 105Ah lithium battery is typically between 20V to 24V, equating to 2.5V to 3.0V per cell, to prevent damage from over-discharging.
What is the recommended charge voltage for the 24V 105Ah lithium battery?
The recommended charge voltage for the 24V 105Ah lithium battery is approximately 28.8V to 29.2V, corresponding to 3.6V to 3.65V per cell for LiFePO4 batteries.
What communication options are available for the 24V 105Ah lithium battery?
The 24V 105Ah lithium battery may include Bluetooth connectivity for monitoring battery status and performance, as well as BMS (Battery Management System) communication for managing safety and operational functions.
FAQs
How long will a 24V 100Ah lithium battery last?
A 24V 100Ah lithium battery provides 2,400 watt-hours (Wh). To estimate runtime, divide the battery's capacity (2,400 Wh) by the device's power consumption. For example, a 200W device would run for approximately 12 hours.
How long to charge a 24V 100Ah battery?
Charging a 24V 100Ah battery depends on the charger's output. Using a 10A charger, it would take about 10-12 hours to fully charge. Faster chargers or higher current outputs will reduce charging time.
What is the capacity of 24V 100Ah battery?
A 24V 100Ah battery has a total capacity of 2,400 watt-hours (Wh). This is calculated by multiplying the voltage (24V) by the amp-hour rating (100Ah).
What is the voltage of a 24V lithium battery when fully charged?
A fully charged 24V lithium battery typically reaches around 29.2V to 29.4V, depending on the specific type and charging method used.
At what voltage is a 24V battery dead?
A 24V battery is considered dead or fully discharged when its voltage drops to around 20V to 21V. Going below this voltage can cause permanent damage to the battery.
At what voltage is a 24V battery full?
A 24V lithium battery is considered full when it reaches a voltage of around 28.8V to 29.4V, depending on the chemistry and charging method.
What can a 24V 100Ah lithium battery power?
A 24V 100Ah lithium battery can power devices up to 2,400 watt-hours, such as small appliances, electric vehicles, trolling motors, or off-grid systems. The exact usage depends on the device's wattage.
How many KW is a 24V 100Ah battery?
A 24V 100Ah battery provides 2.4 kWh of energy. This is calculated by multiplying the battery's voltage (24V) by its capacity (100Ah).
How many hours will a 24V battery last?
The runtime of a 24V battery depends on the device's power consumption. A 100Ah battery powering a 240W load would last around 10 hours. Larger loads will reduce battery life proportionally.
How many solar panels to charge a 24V 100Ah battery?
To charge a 24V 100Ah battery, you'll need solar panels that provide at least 500-600 watts. Depending on sunlight conditions, two to three 200W panels should be sufficient to charge the battery fully in one day.
Should you charge LiFePO4 to 100%?
LiFePO4 batteries do not need to be charged to 100% regularly. Charging to 80-90% can extend the battery's lifespan, though charging to full capacity occasionally is safe and helps balance the cells.
Can you overcharge a 24V battery?
Overcharging a 24V lithium battery can cause damage and shorten its lifespan. A Battery Management System (BMS) typically prevents overcharging by regulating the voltage and current during charging.
What is the lifespan of a 24V lithium battery?
A 24V lithium battery, such as LiFePO4, typically has a lifespan of 2,000 to 5,000 charge cycles, depending on the quality, depth of discharge, and how well it's maintained.
How many watt hours is a 100Ah 24V battery?
A 24V 100Ah battery provides 2,400 watt-hours (Wh). This is calculated by multiplying the battery's voltage (24V) by its capacity (100Ah).
