| Specifications | |
|---|---|
| Lithium Cell Type | LiFePO4 |
| Nominal Voltage | 12.8V |
| Nominal Capacity | 100Ah |
| Nominal Energy | 1280Wh (1.28kWh) |
| Max Charge Voltage | 14.6V |
| Discharge Cut-off Voltage | 10V |
| Max Continues Charge Current | 50A (0.5C) or 100A (1C) |
| Max Continues Discharge Current | 50A (0.5C) or 100A (1C) |
| Standard Continues Charge Current | 25A or 50A |
| Standard Continues Discharge Current | 25A or 50A |
| Dimensions [L x W x H] |
260 x 168 x 210 mm 10.2 x 6.6 x 8.3 inches BCI Group 24 Size (GP24) |
| Weight | ~10 kg ~22 lbs |
| Charger | 14.6V 20A (0.2C) 5 hours full charge |
| Cycle Life | >6000 cycles (DOD 80% 0.5C) >4000 cycles (DOD 100% 0.5C) |
| Internal Resistance | ≤30 mΩ |
| Max Series Connections | 4 |
| Max Parallel Connections | 4 |
| Self-discharge | ≤1.5% per month |
| IP Rating | IP65 |
| Charge Temperature | 0°C ~ 60°C |
| Discharge Temperature | -20°C ~ 65°C |
| Storage Temperature | -10℃ ~ 50℃ |
| Self-heating | Yes |
| LCD Display | Optional |
| Optional Upgrades | Bluetooth / APP / WiFi / 4G / GPS / LCD Display / RS485 / RS232 / CAN bus / RJ45 / Modbus / Power Switch / Circuit Breaker / Active Balance / etc. |
| BMS | Advanced Smart BMS Over Current / Over Voltage / Low Voltage / Over Charge / Over Discharge / Overheat / Over Temperature / Low Temperature / Short Circuit / etc. |
| Terminal | M8 |
| Battery Case | ABS |
| Design Life | 10 Years |
| Silk-screen / Label / Laser Logo | Yes |
| User Manual | Yes |
| OEM / ODM | Yes |
| Certifications | UL 1642 / IEC 62619 / CE / MSDS / UN38.3 |
| Applicable Environments | Winter Snow, Mountains, Desert, City, Damp Land, etc. |

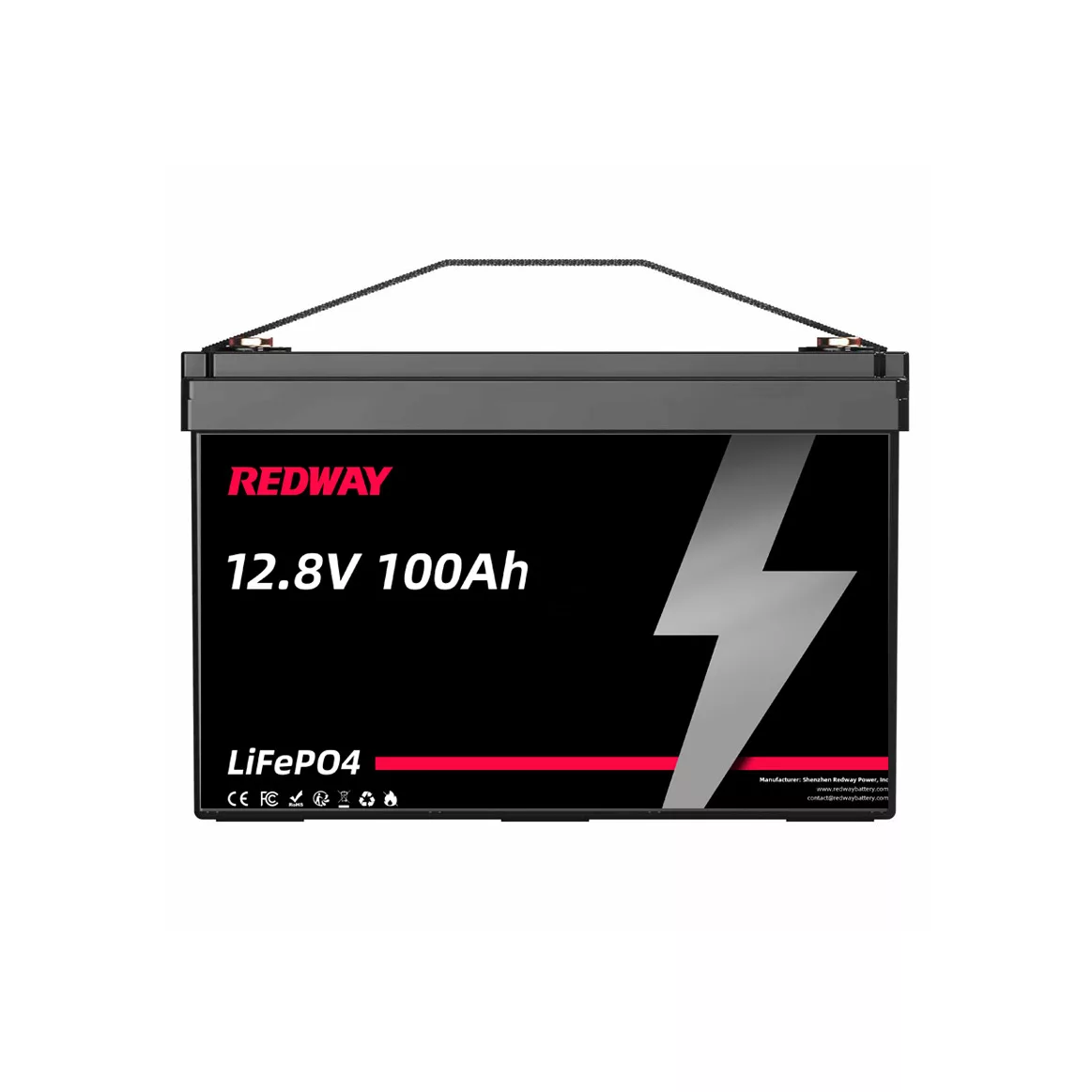

The 12V 100Ah LiFePO4 battery offers unmatched performance and reliability for a variety of applications, including RVs, marine vehicles, and off-grid energy systems. With its Lithium Iron Phosphate (LiFePO4) chemistry, this battery provides superior safety, stability, and longevity compared to traditional lead-acid batteries. It boasts a nominal capacity of 100Ah and delivers a robust 1280 Wh of energy, ensuring consistent power supply even in demanding conditions.
Designed for versatility, this battery performs efficiently across a wide temperature range from -20°C to 65°C. Its advanced Battery Management System (BMS) includes protections against overcharging, over-discharging, and short circuits, enhancing safety and extending the battery’s lifespan. Ideal for both personal and commercial use, the 12V 100Ah LiFePO4 battery is engineered to support a broad spectrum of applications, ensuring reliability and efficiency wherever it’s deployed.
Top 5 Selling Points
- Extended Lifespan: With over 6,000 cycles at 80% DOD and over 15,000 cycles at 60% DOD, this battery outlasts conventional options, reducing replacement frequency and cost.
- Robust Safety Features: Equipped with a sophisticated BMS, it includes multiple protections such as overcharge, over-discharge, and short circuit, ensuring safe operation and longevity.
- Wide Temperature Tolerance: Operates efficiently in extreme temperatures from -20°C to 65°C, making it suitable for diverse environments and applications.
- High Power Output: Delivers a peak discharge current of up to 300A, providing reliable power for high-demand applications and ensuring consistent performance.
- Versatile Applications: Perfect for RVs, marine use, solar energy storage, and backup power systems, this battery adapts to various power needs with ease.
