| Specifications | |
|---|---|
| Cell Type | LiFePO4 |
| Rated Voltage | 12.8V |
| Rated Capacity | 100Ah |
| Rated Energy | 1280Wh |
| Charge Voltage | 14.6V |
| Discharge Cut-off Voltage | 10V |
| Max Continues Charge Current | 100A |
| Max Continues Discharge Current | 100A |
| Dimensions [L x W x H] | 502 x 187 x 242 mm |
| Weight | ~13 kg |
| Self-heating | No |
| Charger | Yes |
| Cycle Life | >5000 cycles (80% DOD 0.5C) |
| Internal Resistance | ≤10 mΩ |
| Max Parallel | 4 |
| Self-discharge | ≤1.5% per month |
| IP Rating | IP65 |
| Charge Temperature | 0°C ~ 60°C |
| Discharge Temperature | -20°C ~ 65°C |
| Optional Upgrades | Self-heating / Bluetooth / App / WiFi / 4G / GPS / LCD Display / RS485 / RS232 / CAN-bus / RJ45 / Active Balance / etc. |
| BMS | Over current / Over charge / Over discharge / Overload / Over voltage / Low-voltage / Over temperature / Low temperature / Overheat / etc. |
| Terminal | M8 |
| Battery Shell | ABS |
| Design Life | 10 Years |
| Warranty | 3 Years |
| Silkscreen / Label / Laser Logo | Yes |
| User Manual | Yes |
| OEM / ODM | Yes |
| Shipment | Yes |
| Application | RVs, Motorhome, Trailer, Marine, Yacht, Fishing Boat, Solar ESS, Off Grid Living, Camping Living. |
| Certification | UL 1642 / IEC 62133 / IEC 62619 / CE / RoHS / MSDS / UN38.3 |

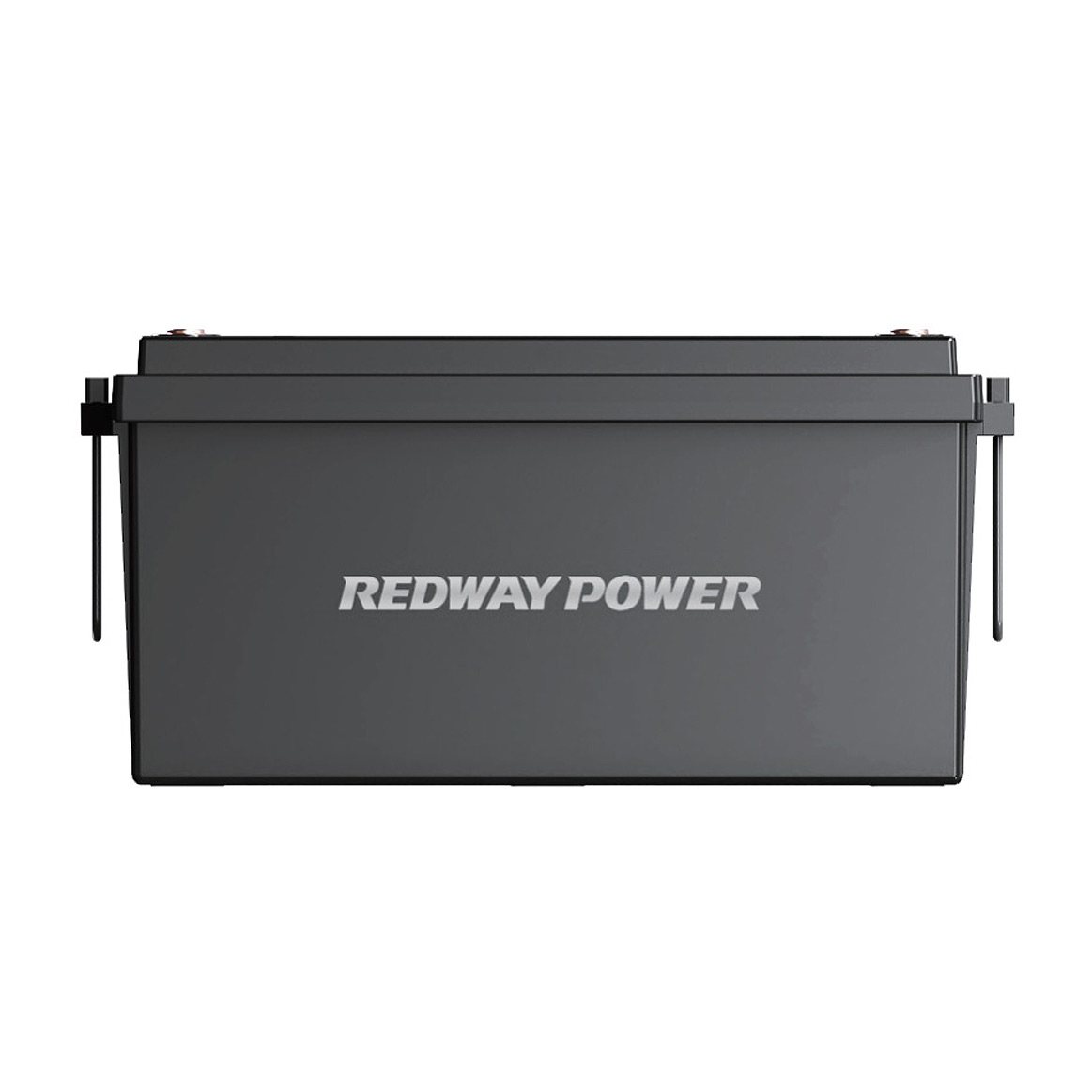

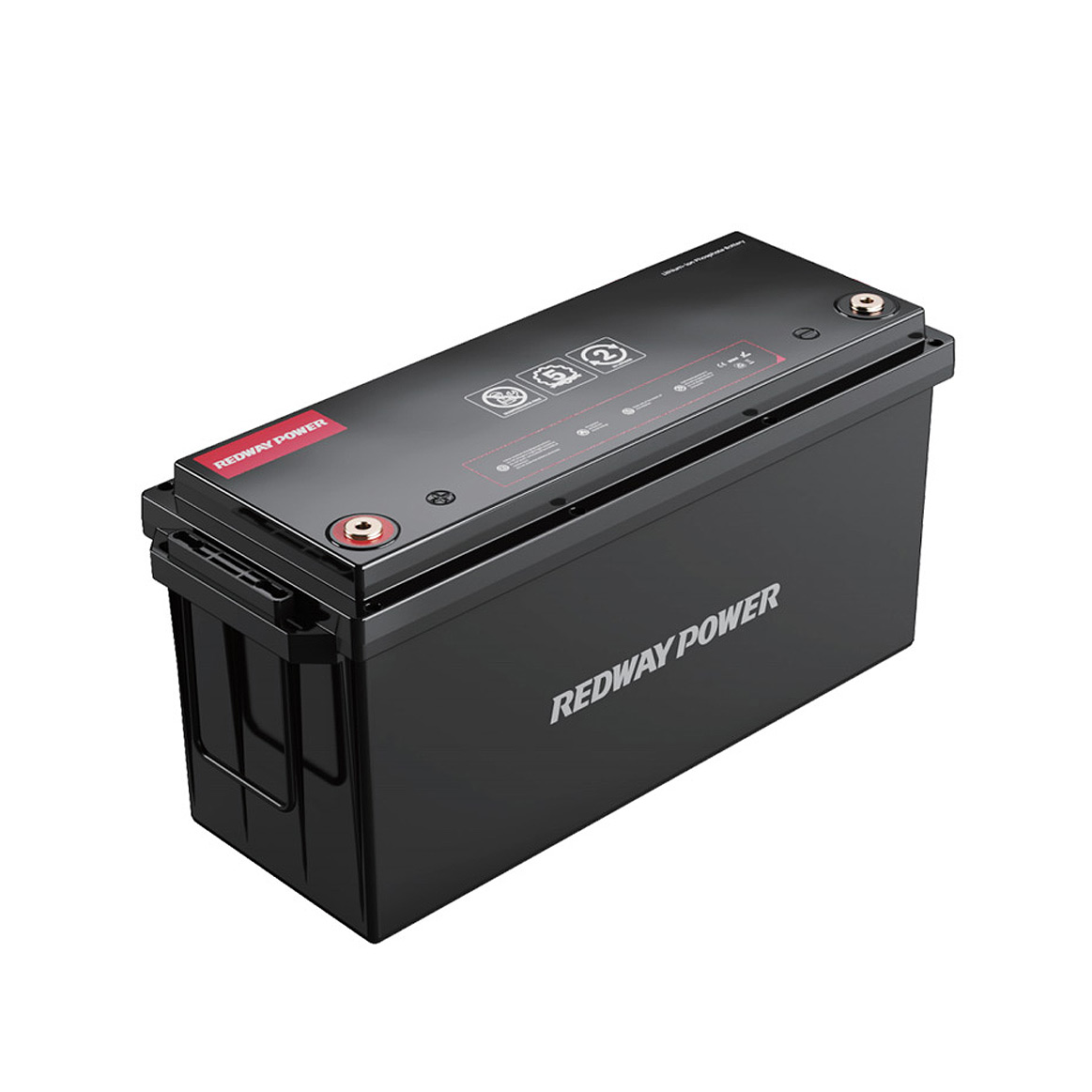

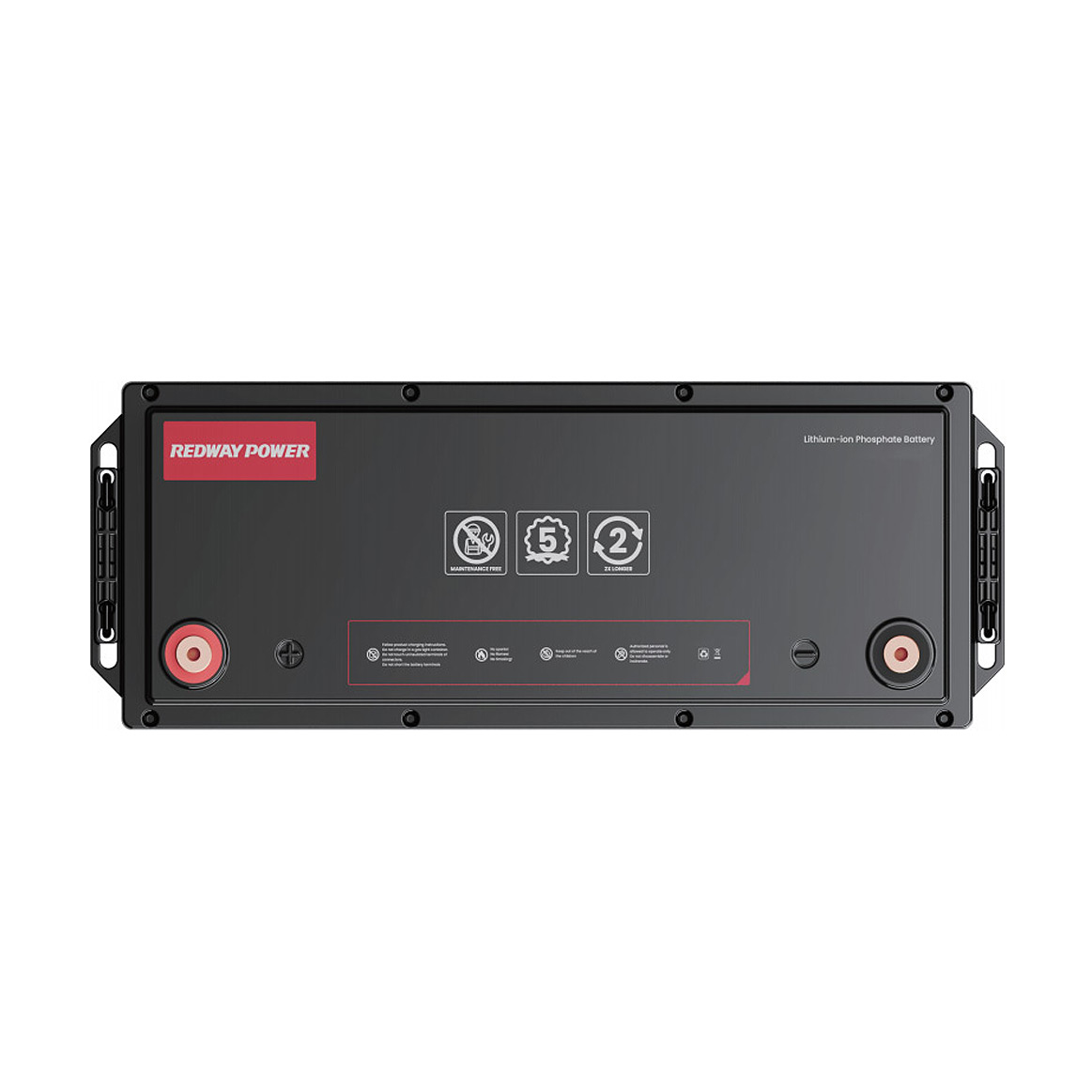

12V 100Ah LiFePO4 Lithium Battery (Ultra)
• Cell: LiFePO4
• MOQ: 1
• Delivery: 20 Days
• OEM / ODM: Yes
• Delivery Terms: FOB, EXW, CIF
• Payment: T/T, L/C, PayPal
• Sea / Air / Land Shipment: 10FT, 20FT, 40FT
