You can charge a lithium-ion battery without a charger using several methods: connect to a USB port, use an AC adapter, or harness solar power. Additionally, you can use a power bank or another battery of similar voltage. Always ensure proper voltage and polarity to avoid damage.

In today’s tech-driven world, lithium-ion batteries are ubiquitous, powering everything from smartphones and laptops to electric vehicles. But what happens when your charger is lost or damaged? Can you still breathe life into your lithium-ion battery? Indeed, you can. This comprehensive guide explores various methods to charge a Li-Ion battery without a traditional charger, ensuring you stay connected and powered up in any situation.

Understanding Lithium-Ion Batteries

Before diving into alternative charging methods, it’s essential to understand lithium-ion batteries. These batteries are popular for their high energy density, low self-discharge rate, and minimal memory effect. They operate on a principle where lithium ions move between two electrodes through an electrolyte, generating electrical power. Proper handling and charging are crucial to maintaining their efficiency and safety.

Methods to Charge a Lithium-Ion Battery Without a Charger

1. USB Power Source

One of the most accessible methods to charge a lithium-ion battery is through a USB power source. Many devices, including smartphones and laptops, provide a 5V output through their USB ports. Here’s how you can leverage this:

• Obtain a USB Cable: You need a USB cable that matches the battery’s connector. For instance, if your battery uses a JST connector, you’ll need a USB-to-JST cable.
• Connect the Cable: Attach the USB cable to the battery and plug the other end into a USB port. The USB port should be on a device or adapter that supplies a stable 5V.
• Monitor the Charging: Keep an eye on the battery during charging. Ensure it doesn’t overheat or show signs of malfunction.

2. DIY Charging Circuit

For those with a technical inclination, creating a DIY charging circuit can be a practical solution. This method involves building a circuit that can safely charge your Li-Ion battery. Here’s a step-by-step approach:

• Gather Materials: You will need a DC-DC converter (to adjust voltage levels), a battery protection circuit, and a power supply (like a regulated wall adapter).
• Assemble the Circuit: Connect the power supply to the DC-DC converter, which will regulate the voltage to match the battery’s charging requirements. Integrate the battery protection circuit to prevent overcharging and ensure safe charging.
• Connect the Battery: Attach your lithium-ion battery to the circuit and verify the output voltage aligns with the battery’s specifications.

3. Solar Charging

Harnessing solar energy is another innovative way to charge your lithium-ion battery. This method is particularly useful if you’re in an outdoor environment or during a power outage.

• Solar Panel: Use a solar panel with an output voltage compatible with your battery’s charging requirements. Most panels will have an output of 5V to 12V.

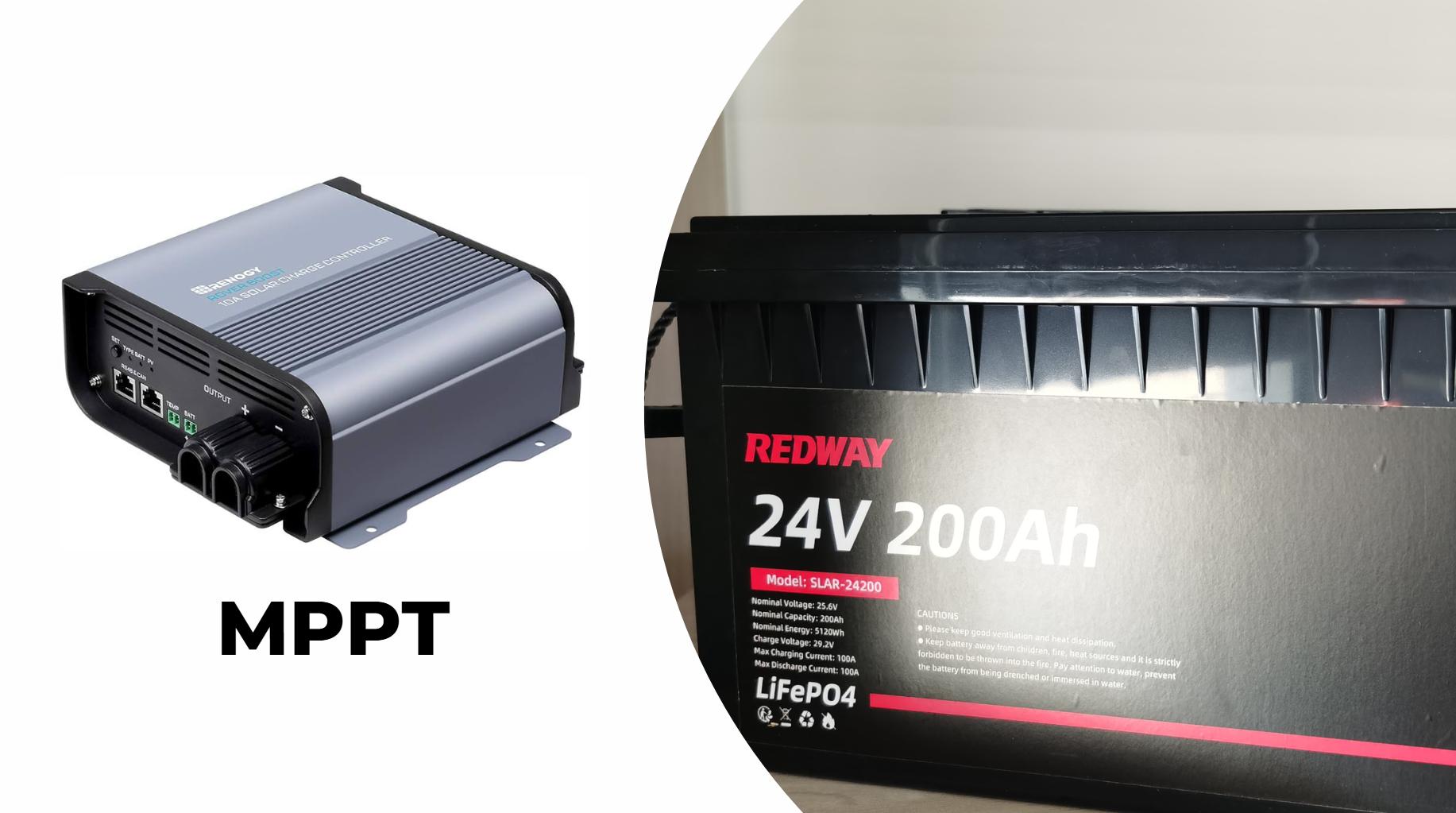

• Charge Controller: Incorporate a charge controller to regulate the voltage and prevent overcharging. This device helps ensure the battery is charged safely.
• Connect the Battery: Wire the solar panel to the charge controller, and then connect the controller to your lithium-ion battery. The charge controller will manage the flow of electricity from the panel to the battery.

4. Battery Management System (BMS)

A Battery Management System (BMS) can facilitate charging in situations where conventional chargers are unavailable. The BMS ensures that the battery is charged and discharged within safe limits.

• Purchase a BMS: Choose a BMS that matches the specifications of your lithium-ion battery. Ensure it supports the battery’s voltage and current requirements.
• Install the BMS: Connect the BMS to the battery and the power source. The BMS will manage the charging process and protect the battery from overcharging, overheating, and excessive discharge.
• Verify Functionality: Check the connections and monitor the charging process. The BMS should indicate the status of the battery and charging process.

5. Power Banks

If you have a power bank with adjustable output settings, it can be used to charge your lithium-ion battery. This method is straightforward and highly portable.

• Check Compatibility: Ensure the power bank’s output matches the voltage required by your lithium-ion battery.
• Use an Adapter: Depending on the power bank and battery connectors, you may need an adapter or cable that fits both.
• Connect and Charge: Attach the battery to the power bank and initiate the charging process. Monitor the charging to ensure it’s progressing correctly.

Safety Considerations

When charging lithium-ion batteries without a charger, safety is paramount. Here are key safety tips to follow:

• Avoid Overcharging: Never exceed the battery’s maximum voltage. Overcharging can lead to overheating, swelling, or even explosions.
• Use Proper Connectors: Ensure all connections are secure and correct to prevent short circuits.
• Monitor Temperature: Keep an eye on the battery’s temperature during charging. If it becomes excessively hot, discontinue charging immediately.
• Handle with Care: Lithium-ion batteries are sensitive to physical damage. Avoid punctures or severe impacts.

Conclusion

Charging a lithium-ion battery without a traditional charger is feasible through various methods such as using a USB power source, DIY circuits, solar energy, a battery management system, or power banks. Each method has its own set of requirements and precautions, but with careful attention to safety and proper setup, you can ensure your battery remains functional and charged.

By understanding these alternative charging techniques, you are better prepared to handle unexpected situations and keep your devices powered. Whether you’re an electronics enthusiast or simply in a pinch, these solutions offer practical ways to charge your lithium-ion battery without relying on a standard charger.

FAQs

How to Charge Li-ion Batteries Without a Charger?
You can charge Li-ion batteries without a charger using several methods: connect to a USB port from a computer or power bank, use solar panels, or utilize an AC adapter with the correct voltage. Additionally, you can charge them using three AAA batteries in series, which provide sufficient voltage for charging.

Can I Charge a Li-ion Battery with a Phone Charger?
Yes, you can charge a Li-ion battery with a phone charger, provided the charger has the appropriate voltage and current output. Most phone chargers output 5V via USB, which is suitable for many Li-ion batteries. Ensure the connections are secure and compatible to avoid damage.

How to Charge a Lithium-Ion Battery Wirelessly?
To charge a lithium-ion battery wirelessly, you need a compatible wireless charging pad or stand. Place the device on the pad, ensuring proper alignment with the charging coils. The pad will transfer energy through electromagnetic induction, allowing the battery to charge without physical connections.

Can a Dead Li-ion Battery Be Recharged?
Yes, a dead Li-ion battery can often be recharged, but it depends on how deeply it has discharged. If the battery has not been damaged by prolonged low voltage, using an appropriate charger should restore its charge. However, if it has been deeply discharged for an extended period, it may require special techniques or might be permanently damaged.
