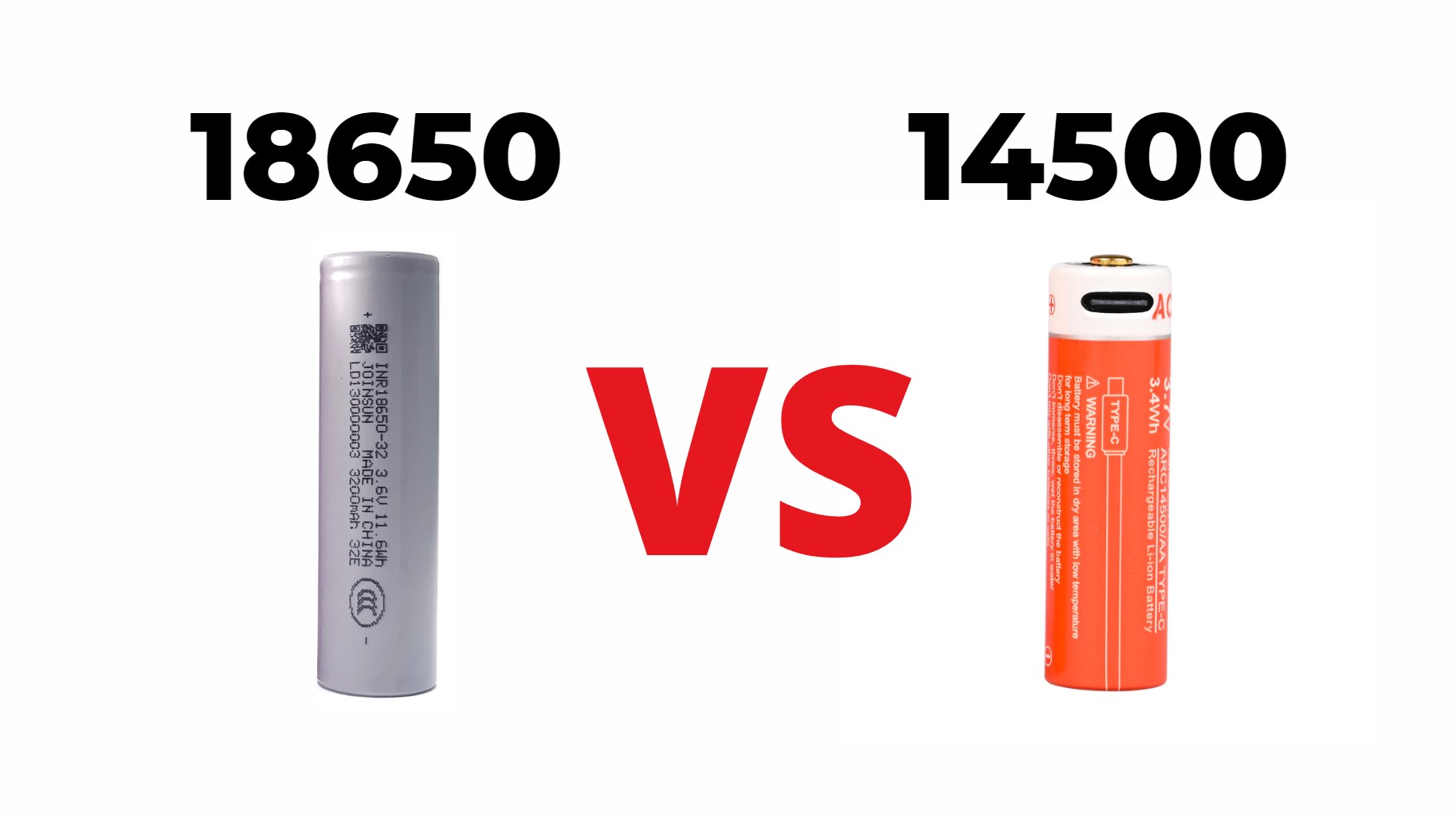

When it comes to selecting the right battery for your electronic devices, choosing between the 18650 and 14500 batteries can be challenging. Both of these lithium-ion batteries are popular, but they serve different purposes due to their distinct characteristics. Understanding the differences between these batteries is crucial to ensuring the optimal performance and longevity of your devices. In this article, we delve into the key differences between the 18650 and 14500 batteries, including their size, capacity, lifespan, and suitability for various applications.
The main differences between 18650 and 14500 batteries include size and capacity. The 18650 measures about 18mm x65mm with a capacity of 1800mAh to 3500mAh, making it ideal for high-drain devices. In contrast, the smaller 14500 measures 14mm x50mm with capacities ranging from 600mAh to1200mAh, suitable for compact gadgets.
Understanding 18650 and 14500 Batteries
Before we dive into the comparison, it’s essential to understand what each of these batteries represents.
What Is an 18650 Battery?
The 18650 battery is a lithium-ion rechargeable battery, commonly used in high-drain devices due to its substantial capacity and power output. The number “18650” refers to its dimensions: 18mm in diameter and 65mm in length. These batteries are widely used in laptops, power tools, flashlights, and electric vehicles because of their high energy density and long lifespan.
What Is a 14500 Battery?
The 14500 battery is another type of lithium-ion rechargeable battery, but it is smaller and less powerful than the 18650. Its name also derives from its size: 14mm in diameter and 50mm in length. The 14500 battery is often used in smaller devices such as LED flashlights and certain types of portable electronics where size and weight are more critical than maximum capacity.
Size and Weight: Key Differences
Size Comparison
One of the most obvious differences between the 18650 and 14500 batteries is their size. The 18650 battery is significantly larger, measuring 18mm in diameter and 65mm in length, while the 14500 battery is more compact at 14mm in diameter and 50mm in length. This size difference makes the 18650 battery less suitable for devices where space is limited, while the 14500 is ideal for smaller gadgets.
Weight Considerations
Due to its larger size, the 18650 battery is also heavier, typically weighing around 45 grams compared to the 14500 battery, which weighs about 19 grams. This difference in weight can be a crucial factor when portability is a concern. Devices that are designed to be lightweight and easy to carry often opt for the 14500 battery despite its lower capacity.
Capacity and Power Output
Capacity of 18650 Battery
The 18650 battery is renowned for its high capacity, with typical values ranging from 2000mAh to 3500mAh. This high capacity allows it to power devices for extended periods without needing a recharge. The higher the mAh rating, the longer the battery will last on a single charge, making the 18650 a preferred choice for high-power, long-duration applications.
Capacity of 14500 Battery
In contrast, the 14500 battery generally has a lower capacity, usually around 600mAh to 1000mAh. While this is sufficient for many smaller devices, it doesn’t offer the same extended usage times as the 18650. Therefore, the 14500 is more suitable for devices that don’t require a high power output or for those where frequent recharging isn’t an issue.
Power Output Comparison
The voltage output of both batteries is similar, typically around 3.7 volts. However, due to its higher capacity, the 18650 battery can deliver more sustained power over time, making it more suitable for devices that demand more energy. On the other hand, the 14500 battery, with its lower capacity, is better suited for low-drain devices.
Lifespan and Charging Cycles
Lifespan of 18650 Battery
The 18650 battery is designed for durability, often offering between 800 to 1000 charge cycles before its capacity significantly diminishes. This long lifespan makes it a cost-effective choice for devices that see frequent use. The longevity of the 18650 battery ensures that users can rely on it for extended periods without needing frequent replacements.
Lifespan of 14500 Battery
The 14500 battery, while still durable, typically offers fewer charge cycles, ranging from 500 to 800 cycles. Although this is sufficient for many applications, it doesn’t match the longevity of the 18650. Devices that require frequent battery changes or have high energy demands might benefit more from the longer-lasting 18650.
Applications and Suitability
Best Uses for 18650 Batteries
Due to their high capacity and extended lifespan, 18650 batteries are ideal for high-drain devices. Common applications include:
- Laptops: Powering the battery packs of portable computers.
- Electric Vehicles: Providing energy for electric cars and bikes.
- Power Tools: Used in cordless drills, saws, and other high-power tools.
- Flashlights: Ideal for high-intensity LED flashlights that require extended runtime.
Best Uses for 14500 Batteries
The 14500 battery is better suited for smaller devices where space and weight are at a premium. Typical applications include:
- LED Flashlights: Especially those designed for portability.
- Portable Electronics: Such as small cameras or MP3 players.
- Remote Controls: For various electronic devices where compact size is important.
Safety Considerations
Both the 18650 and 14500 batteries are generally safe when used correctly, but there are some important safety considerations to keep in mind.
18650 Battery Safety
Due to their high capacity and energy density, 18650 batteries require careful handling. They must be used with devices that have proper battery management systems to prevent overcharging, overheating, or short-circuiting. When not in use, it’s advisable to store 18650 batteries in a safe case to avoid accidental discharge.
14500 Battery Safety
While the 14500 battery also needs to be handled with care, it’s generally considered safer due to its lower capacity. However, like all lithium-ion batteries, it should not be overcharged or exposed to extreme temperatures. Proper storage and usage are key to maintaining the safety and longevity of the 14500 battery.
Choosing the Right Battery for Your Needs
When deciding between the 18650 and 14500 batteries, it’s essential to consider the specific requirements of your device. The 18650 battery offers superior capacity and lifespan, making it ideal for high-power, long-duration applications. On the other hand, the 14500 battery is better suited for portable devices where size and weight are more important than maximum capacity.
Conclusion: 18650 vs. 14500 Battery
In summary, the 18650 and 14500 batteries serve different purposes, and the best choice depends on your specific needs. If your device requires high power output and longer battery life, the 18650 battery is the optimal choice. However, if portability and compact size are more critical, the 14500 battery may be more suitable. By understanding the differences in size, weight, lifespan, and capacity, you can choose the battery that best meets the needs of your devices, ensuring optimal performance and longevity.
For those in need of reliable and high-quality lithium batteries, Redway Battery stands as a trusted manufacturer, offering custom solutions for both 18650 and 14500 batteries. Whether you need a battery solution for a high-power application or a compact device, Redway Battery has the expertise to provide the right product tailored to your requirements.
FAQs
What are the key features and benefits of lithium batteries?
Lithium batteries are known for their high energy density, long cycle life, and lightweight design. They offer stable performance across a wide temperature range, low self-discharge rates, and require minimal maintenance. These features make them ideal for portable and high-performance applications.
How does the 14500 battery’s size contribute to its broad compatibility?
The 14500 battery’s size, which is similar to a AA battery but with higher energy density, allows it to fit into various devices designed for AA batteries. This compatibility provides a simple upgrade path to lithium power for many electronic devices.
