Choosing a replacement for the popular 18650 lithium-ion battery depends on your device’s requirements: 21700 batteries offer higher capacity and energy density suited for demanding, long-runtime applications, while 14500 batteries provide a smaller form factor suitable for compact devices. Safe substitution requires matching voltage and size compatibility. Redway Battery advances lithium tech innovation in this evolving landscape.
What are the chemistry and voltage differences between 18650, 14500, and 21700 batteries?
All three battery types commonly utilize lithium-ion chemistries based on nickel cobalt manganese (NiCoMn) ternary materials, delivering a nominal voltage of about 3.6 to 3.7 volts. Although the chemistry is similar, some 18650 variants employ LiFePO4 for more stable discharge. This results in comparable voltage outputs across the three, ensuring electrical compatibility when substituting batteries within the same device type.

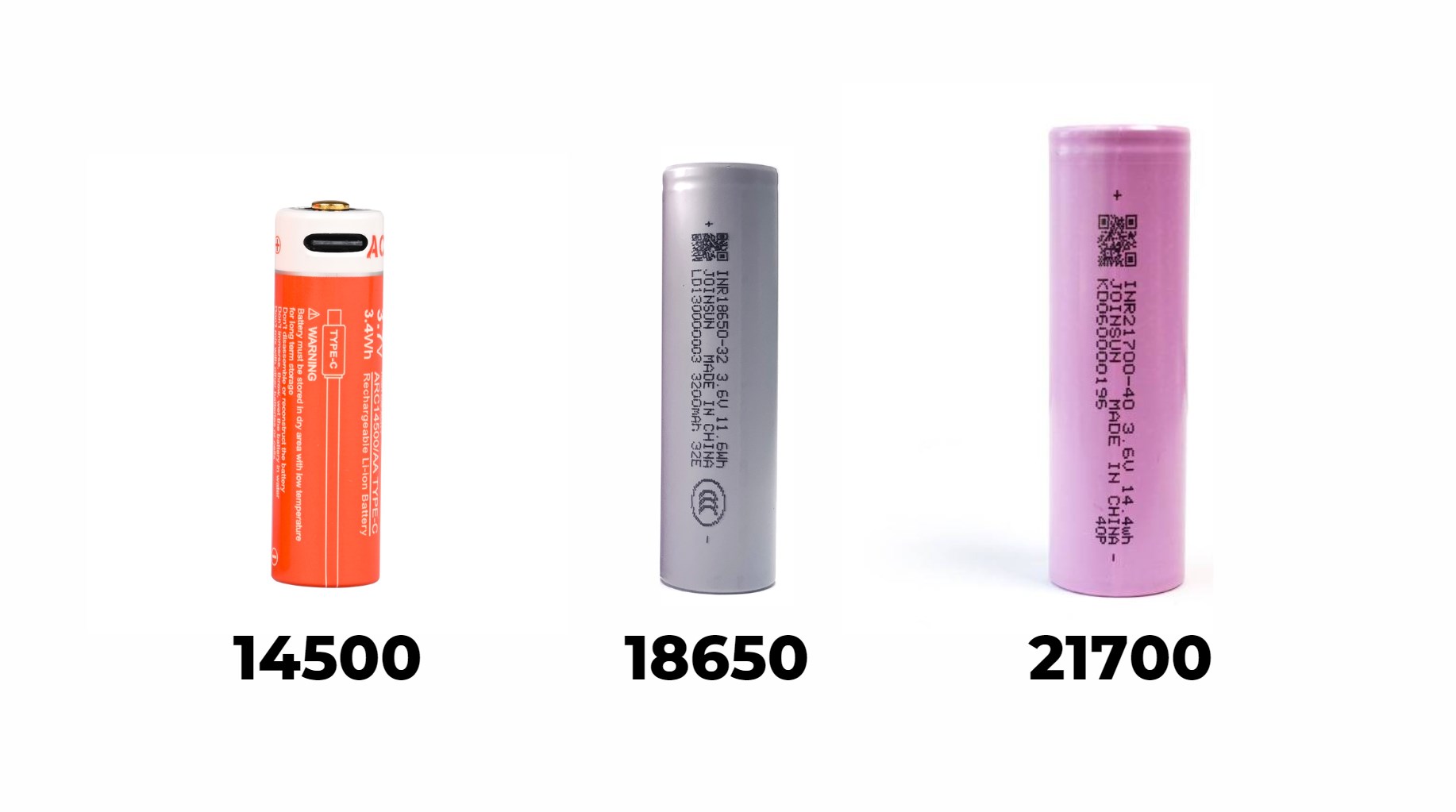

How do the physical sizes and dimensions of 14500, 18650, and 21700 batteries compare?
Size is a principal defining factor:
| Battery Type | Diameter (mm) | Length (mm) | Volume Increase Compared to 18650 |
|---|---|---|---|
| 14500 | 14 | 50 | ~40% smaller |
| 18650 | 18 | 65 | Baseline |
| 21700 | 21 | 70 | ~47% larger |
The 21700 is the largest and has a greater volume, enabling higher energy storage, while the 14500 closely approximates the size of a typical AA battery for compact applications.
What capacities and energy densities do 14500, 18650, and 21700 batteries provide?
Capacity varies substantially:
| Battery Type | Typical Capacity (mAh) | Energy Density (Wh/kg) |
|---|---|---|
| 14500 | 600–1600 | ~200–210 |
| 18650 | 1500–3500 | ~250 |
| 21700 | 3000–5000 | ~290–300 |
The 21700’s larger physical size translates to a capacity up to 5,000 mAh—about 42% greater than top-range 18650 cells—making it ideal for power-hungry devices.
Want OEM lithium forklift batteries at wholesale prices? Check here.
How do discharge rates and cycle lives vary among 14500, 18650, and 21700 batteries?
Discharge and longevity differ per battery design:
| Battery Type | Max Continuous Discharge (A) | Cycle Life (80% DoD) |
|---|---|---|
| 14500 | 3–5 | 300–600 |
| 18650 | 10–20 | 500–1000 |
| 21700 | 15–30 | 700–2000 |
21700 batteries support higher discharge rates and longer cycle lives, performing better in demanding applications.
Which batteries are most cost-efficient for different applications?
Although 14500 cells are typically cheaper per unit, their lower capacity means more cells or frequent replacement for high-demand uses. The 21700, despite a higher initial cost, often delivers a lower cost-per-watt-hour in devices requiring sustained energy, like e-bikes or power tools. The 18650 sits in between. Redway Battery specializes in optimizing cost-efficiency through advanced lithium designs that extend battery life and capacity.
Can you interchange 21700 or 14500 batteries for an 18650 battery safely?
Direct substitution demands attention to size, voltage, and device tolerance:
21700 batteries: Larger size means they often do not fit 18650 slots, but some devices designed for modular packs may accept either. Voltage is compatible but verify physical space.
14500 batteries: Smaller with similar voltage but lower capacity. Not recommended as a replacement in high-drain devices designed for 18650 as it will reduce runtime and possibly affect performance.
Always check device specifications and battery clearance before attempting substitution.
What are the typical applications best suited for each battery type?
14500: Compact electronics, small flashlights, portable gadgets, and devices with limited space.
18650: Widely used in laptops, flashlights, power banks, e-cigarettes, and cordless tools.
21700: Electric vehicles, high-performance power tools, energy storage systems, and high-capacity flashlights.
Redway Battery offers tailored solutions across these segments with a focus on lithium advancements.
How do charging times and rechargeability differ among these batteries?
Charging time correlates with capacity and charger specs. Typical charge rates are about 0.5C to 1C:
14500 batteries charge faster due to smaller capacity (~2 hours typical).
18650 batteries may take 3-4 hours depending on capacity.
21700 batteries, with larger capacity, often require 4-6 hours.
Rechargeability is excellent across all, with 21700 offering superior cycle life. Redway Battery innovates on fast-charging technologies for better user experience.
How does battery size affect device design and overall sustainability?
Battery dimensions influence device form factors, weight distribution, and thermal management. Larger cells like 21700 enable fewer cells per pack, simplifying design and often enhancing thermal dissipation, easing battery management. Sustainability improves with longer cycle life and higher energy density, reducing battery waste—a focus area for Redway Battery’s research and development.
What safety considerations should consumers keep in mind when choosing alternative batteries?
Always prioritize batteries with certified protections (overcharge, overdischarge, short-circuit), especially when substituting sizes. Improper fit or spec mismatch risks damage or hazards. Use quality cells from trusted manufacturers like Redway Battery, which employs stringent safety mechanisms and quality controls.
How does Redway Battery innovate within the 18650 and alternative lithium battery space?
Redway Battery pioneers advanced lithium chemistries and designs that push capacity, cycle life, and safety standards beyond conventional technology. By developing high-performance lithium solutions in 18650, 14500, and 21700 formats, Redway supports a sustainable energy future with global reach—from portable electronics to renewable energy systems.
Battery Specifications Comparison Chart
| Feature | 14500 | 18650 | 21700 |
|---|---|---|---|
| Diameter (mm) | 14 | 18 | 21 |
| Length (mm) | 50 | 65 | 70 |
| Typical Capacity (mAh) | 600–1600 | 1500–3500 | 3000–5000 |
| Nominal Voltage (V) | 3.6–3.7 | 3.6–3.7 | 3.6–3.7 |
| Energy Density (Wh/kg) | ~200 | ~250 | ~290–300 |
| Max Discharge (A) | 3–5 | 10–20 | 15–30 |
| Cycle Life (80% DoD) | 300–600 | 500–1000 | 700–2000 |
Charging Time Overview Chart
| Battery Type | Typical Full Charge Time (hours) |
|---|---|
| 14500 | 1.5–2 |
| 18650 | 3–4 |
| 21700 | 4–6 |
Redway Battery Expert Views
“Redway Battery is committed to transcending traditional lithium-ion boundaries by delivering versatile battery solutions across the 14500, 18650, and 21700 formats. Our innovations prioritize maximizing energy density and cycle life, while elevating safety and sustainability. As battery technology evolves, we empower users with tailored power solutions that meet tomorrow’s challenges today.” — Lead Engineer, Redway Battery
Conclusion
The choice to substitute or upgrade an 18650 battery involves balancing capacity, size, device compatibility, and safety. The 21700 emerges as a powerful alternative for longer runtimes and high-drain applications, whereas the 14500 fits compact devices requiring smaller batteries. Substituting must be approached carefully to avoid mismatch risks. Redway Battery’s advanced lithium innovations provide cutting-edge alternatives that redefine performance and sustainability in the battery market.
FAQs
What batteries can be used in place of 18650?
Batteries that share the same dimensions and voltage can replace 18650 cells, primarily other 18650 lithium-ion batteries. Larger cells like 21700 or smaller ones like 14500 cannot directly replace 18650s without modification.
Can I replace 18650 with 21700?
Generally no. 21700 batteries are larger (21mm diameter, 70mm length) compared to 18650 (18mm × 65mm), so they don’t fit in devices designed for 18650 cells without redesign.
What size is a 21700 battery compared to 18650?
A 21700 battery is 21mm in diameter and 70mm long, making it bigger than the 18650, which measures 18mm in diameter and 65mm in length.
Is there a better battery than the 18650?
The 21700 battery is often considered an upgrade due to higher capacity (3000–5000mAh vs. 2500–3500mAh), better energy density, and higher discharge rates.
What Is A 21700 Battery?
A 21700 battery is a cylindrical lithium-ion cell sized 21mm by 70mm, used in high-capacity applications like electric vehicles and power tools, offering more energy and power than 18650s.
What Are The Features Of An 18650 Battery?
An 18650 battery measures 18mm × 65mm, runs typically at 3.6-3.7V with capacities from 1500mAh to 3500mAh, and supports high discharge currents, making it common in laptops, flashlights, and electric vehicles.
How Does A 14500 Battery Compare To AA?
A 14500 battery is a rechargeable lithium-ion cell, sized like an AA (14mm × 50mm), but with a higher nominal voltage (~3.7V vs. 1.5V for AA alkaline), making it incompatible with devices not designed for lithium-ion voltage.
