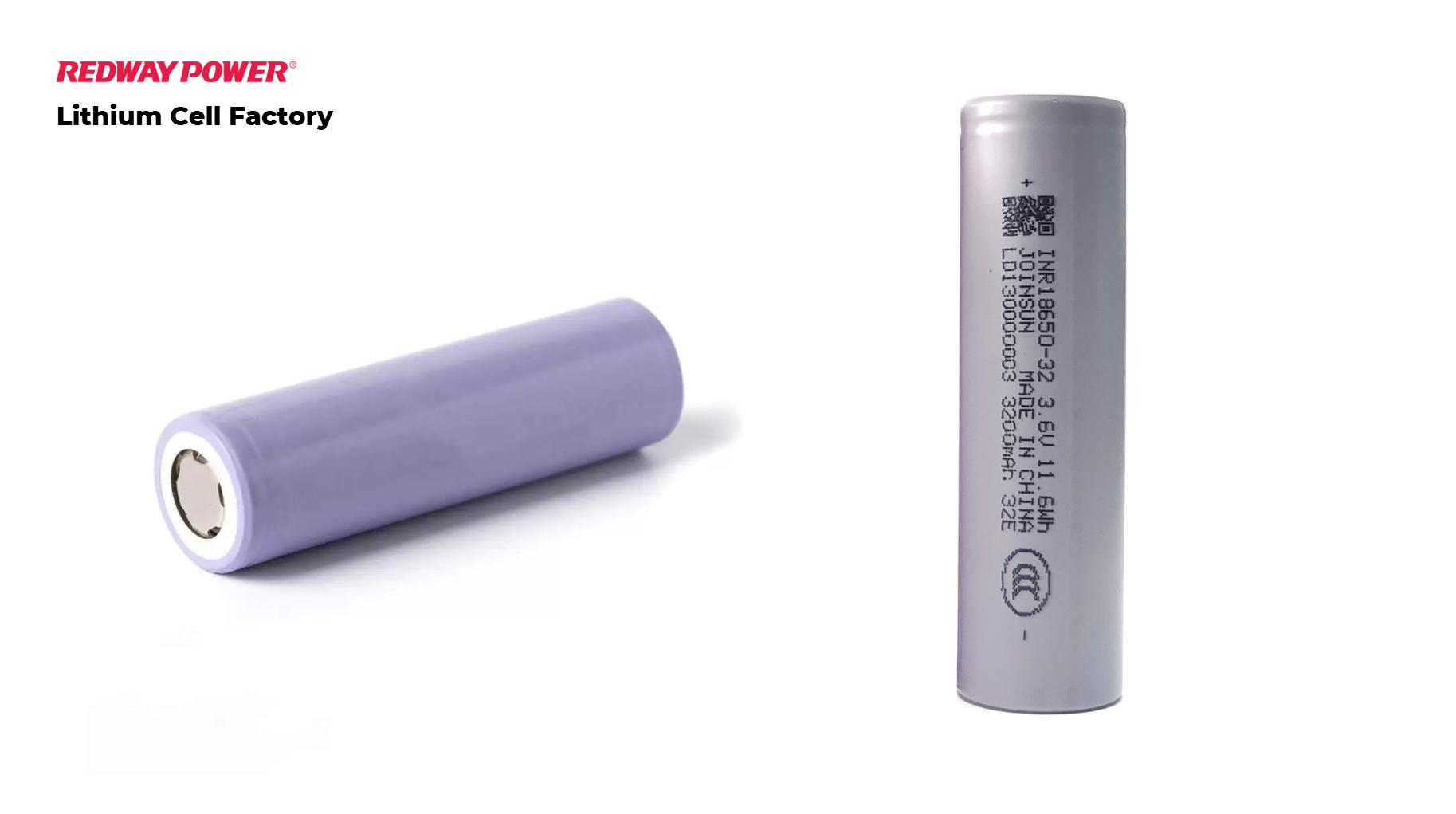

Understanding the dimensions of 18650 batteries is essential for selecting compatible devices and ensuring optimal performance. The standard size for an 18650 battery is 18 mm in diameter and 65 mm in length. This cylindrical lithium-ion battery is widely used in various applications, including electronics and electric vehicles, due to its compact size and high energy density.
What Are the Key Specifications of 18650 Batteries?
The specifications of an 18650 battery include several important parameters:
- Dimensions: Standard dimensions are 18 mm in diameter and 65 mm in length.
- Voltage: Typically ranges from 3.6 to 3.7 volts.
- Capacity: Varies widely, generally between 1800 mAh to over 3500 mAh, depending on the specific model and manufacturer.
- Chemistry: Most are lithium-ion, with variations including lithium iron phosphate (LiFePO4) and nickel-cobalt-manganese (NCM).
Chart: Key Specifications of an 18650 Battery
| Specification | Dimension |
|---|---|
| Diameter | 18 mm |
| Length | 65 mm |
| Voltage | 3.6 – 3.7 volts |
| Capacity | 1800 – 3500 mAh |
How Are 18650 Batteries Sized?
The name “18650” directly refers to its dimensions:
- 18: The diameter in millimeters.
- 65: The length in millimeters.
These measurements are standardized across manufacturers, although slight variations may occur due to design differences or protective casing.
What Is the Typical Voltage and Capacity of 18650 Batteries?
Most standard lithium-ion 18650 batteries operate at a nominal voltage of approximately 3.6 volts, with a maximum voltage around 4.2 volts when fully charged. The capacity varies significantly based on usage:
- Standard Models: Typically range from 1800 mAh to about 2500 mAh.
- High-Capacity Models: Can reach up to 3500 mAh, making them suitable for high-drain devices.
What Are the Dimensions of an 18650 Battery?
The dimensions are standardized as follows:
- Diameter:Â 18 mm
- Length:Â 65 mm
These dimensions make them suitable for a wide range of devices that require compact power solutions.Chart: Standard Dimensions of an 18650 Battery
| Dimension Type | Measurement |
|---|---|
| Diameter | 18 mm |
| Length | 65 mm |
| Total Volume | Approximately 16.5 cm³ |
How Do You Choose the Right 18650 Battery for Your Device?
When selecting an appropriate battery:
- Check Compatibility: Ensure that your device is designed for an 18650 battery.
- Consider Capacity Needs: Choose a battery with sufficient capacity based on how long you need it to last between charges.
- Evaluate Discharge Rates: For high-drain devices, select batteries with higher discharge rates (measured in amps).
What Are the Advantages of Using 18650 Batteries?
Using lithium-ion 18650 batteries offers several advantages:
- High Energy Density: They provide substantial power relative to their size.
- Rechargeability: These batteries can be recharged hundreds of times, making them cost-effective over time.
- Stable Voltage Output: They maintain consistent voltage throughout their discharge cycle, ensuring reliable performance.
How Do 18650 Batteries Compare to Other Battery Types?
When compared to other common battery types:
- AA Batteries: AA batteries measure about 14 mm in diameter and 50 mm in length, making them smaller than an 18650.
- D Cell Batteries: D cells are larger, measuring about 34 mm in diameter and over 60 mm in length, which makes them bulkier than an 18650.
This comparison highlights that while the 18650 is larger than AA batteries, it is still compact enough for portable applications.
What Are the Common Applications for 18650 Batteries?
Due to their versatile specifications, 18650 batteries are used in various applications:
- Consumer Electronics: Laptops, flashlights, and portable chargers often utilize these batteries.
- Electric Vehicles (EVs): Many EVs use multiple cells in series or parallel configurations for efficient power storage.
- Power Tools: High-drain tools benefit from the robust performance characteristics of these batteries.
FAQ Section
- What is an 18650 battery?
An 18650 battery is a rechargeable lithium-ion cell measuring approximately 18 mm by 65 mm, commonly used in electronics. - How long do 18650 batteries last?
Depending on usage and care, they can last several years; however, their capacity diminishes over time with each charge cycle. - Can I use any charger for my 18650 battery?
No, always use a charger specifically designed for lithium-ion cells to avoid damage or safety hazards. - Are all 18650 batteries the same?
No, they vary by capacity, voltage, chemistry, and manufacturer specifications; always check compatibility with your device.
