How to Test the Capacity and Performance of Your Lifepo4 Prismatic Cells: A Guide to Understanding Different Types and Methods

Testing the capacity and performance of LiFePO4 prismatic cells is critical for ensuring their optimal functionality and longevity. This guide provides a comprehensive and detailed methodology for evaluating these batteries, focusing on essential factors that impact their performance. By following these steps, you can accurately determine the capacity and health of your LiFePO4 prismatic cells.

Understanding LiFePO4 Prismatic Cells

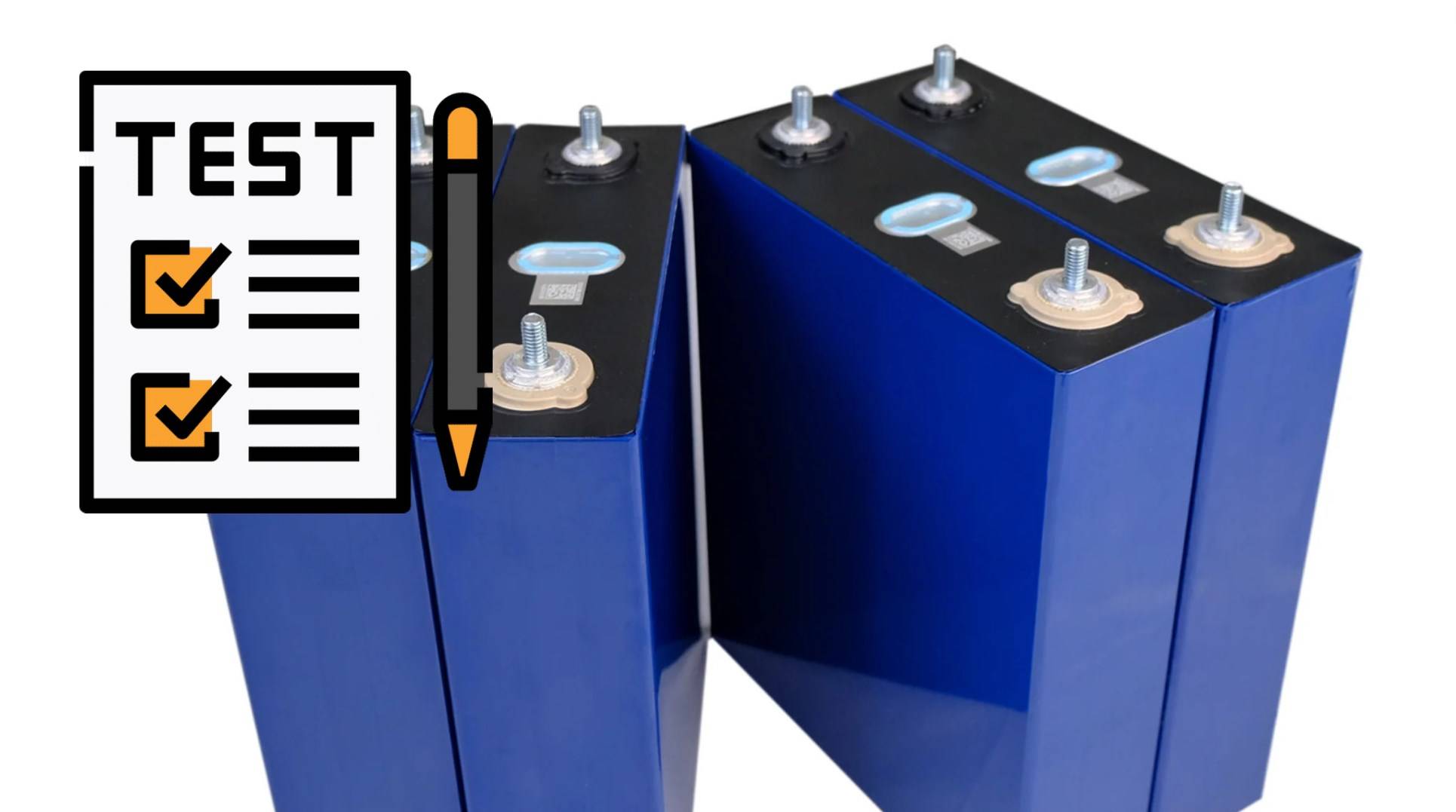

LiFePO4, or Lithium Iron Phosphate, is a type of lithium-ion battery known for its stability, safety, and long cycle life. Prismatic cells are one form factor of these batteries, characterized by their rectangular shape, which allows for efficient space utilization in various applications.

Importance of Testing LiFePO4 Prismatic Cells

Regular testing of LiFePO4 prismatic cells is essential to maintain their performance and extend their lifespan. It helps in identifying potential issues early, ensuring reliability, and optimizing the battery’s overall efficiency.

Pre-Test Preparations

Before conducting any tests, it’s crucial to ensure that your LiFePO4 prismatic cells are in a safe environment and that you have the necessary equipment.

Safety Precautions

1. Protective Gear: Always wear appropriate protective gear, including gloves and safety goggles.
2. Ventilated Area: Conduct tests in a well-ventilated area to avoid inhalation of any gases.
3. Fire Safety: Keep a fire extinguisher nearby, as lithium batteries can be hazardous if mishandled.

Required Equipment

1. Dedicated Charger: Use a charger designed specifically for LiFePO4 batteries to ensure proper charging.
2. Battery Analyzer: A high-quality battery analyzer will provide accurate readings of voltage, current, and capacity.
3. Multimeter: To measure the voltage and ensure the cells are balanced.
4. Temperature Sensor: Monitor the temperature of the cells during testing to avoid overheating.

Step-by-Step Testing Procedure

1. Fully Charge the Battery

Start by fully charging your LiFePO4 prismatic cells using a dedicated charger. This ensures that the battery is at its maximum capacity before testing begins. Follow the manufacturer’s guidelines for charging to prevent overcharging.

2. Setting Up the Constant Current Discharge Test

The constant current discharge test is a standard method to determine battery capacity.

1. Connect the Battery: Connect the fully charged battery to the battery analyzer.
2. Set the Discharge Rate: Configure the analyzer to draw a constant current. The discharge rate should be appropriate for the battery’s specifications, usually around 0.2C to 1C (where C is the capacity of the battery).
3. Start the Test: Begin the discharge process, ensuring that the current remains constant throughout the test.

3. Monitor the Discharge Process

During the discharge test, it’s important to monitor several parameters:

1. Voltage: Observe the voltage drop. LiFePO4 prismatic cells have a nominal voltage of 3.2V and should not be discharged below 2.5V to avoid damage.
2. Current: Ensure the current remains steady at the set value.
3. Temperature: Use a temperature sensor to keep an eye on the battery temperature. Excessive heat can indicate problems.

4. Determine the Cut-Off Point

The test should continue until the battery voltage reaches the predetermined cut-off point, typically 2.5V. This ensures that the test accurately reflects the usable capacity of the battery.

5. Calculate Battery Capacity

Once the cut-off voltage is reached, calculate the battery capacity using the formula:

$\text{Capacity (Ah)}=\text{Average Discharge Current (A)}\times \text{Discharge Time (h)}$

This will give you the battery’s capacity in ampere-hours (Ah), which is a direct measure of its performance.

Analyzing the Results

Understanding Voltage Sag

Voltage sag is a natural phenomenon where the voltage drops under load. Analyzing the voltage sag during the discharge test helps in understanding the internal resistance and efficiency of the LiFePO4 prismatic cells.

1. Initial Drop: A sharp initial drop is normal, but excessive sag may indicate aging or damage.
2. Steady Decline: The voltage should decline steadily. Sudden drops or irregularities may require further investigation.

Temperature Effects

Temperature plays a significant role in battery performance. During the test, monitor the temperature closely:

1. Optimal Range: LiFePO4 batteries perform best within a temperature range of 20°C to 60°C.
2. Overheating: If the temperature exceeds this range, it may indicate internal issues or the need for better cooling mechanisms.

Regular Capacity Testing

To ensure the long-term health and efficiency of your LiFePO4 prismatic cells, conduct regular capacity tests. This will help in identifying degradation trends and taking timely corrective actions.

Frequency of Testing

1. Initial Testing: Test new batteries to establish a baseline capacity.
2. Periodic Testing: Depending on usage, conduct tests every 3 to 6 months.
3. Post-Storage Testing: Test batteries after long periods of storage to ensure they are still in good condition.

Documenting Results

Keep detailed records of each test, including:

1. Test Date: The date of the test for tracking purposes.
2. Initial and Final Voltage: To monitor voltage sag and cut-off points.
3. Discharge Current and Time: For calculating capacity.
4. Temperature Readings: To track thermal performance.

Advanced Testing Methods

For a more comprehensive analysis, consider additional testing methods:

Cycle Life Testing

Cycle life testing involves repeatedly charging and discharging the battery to determine how many cycles it can endure before its capacity drops below a specified level.

1. Procedure: Charge the battery to full, then discharge to the cut-off voltage. Repeat this cycle multiple times.
2. Criteria: Measure capacity after a set number of cycles to evaluate long-term performance.

Internal Resistance Measurement

Internal resistance affects the battery’s efficiency and heat generation.

1. Method: Use a battery analyzer to measure the internal resistance at various stages of charge.
2. Implications: Higher internal resistance indicates aging or potential faults.

State of Health (SOH) Estimation

State of Health (SOH) provides an overall indication of the battery’s condition compared to its original state.

1. Parameters: SOH considers capacity, internal resistance, and other factors.
2. Assessment: Use specialized software and equipment to calculate SOH accurately.

Conclusion

Testing the capacity and performance of LiFePO4 prismatic cells is a meticulous process that requires careful preparation, precise execution, and thorough analysis. By following the outlined steps and regularly monitoring your batteries, you can ensure their optimal performance and longevity. Regular capacity tests, coupled with advanced testing methods, provide a comprehensive understanding of battery health, enabling proactive maintenance and efficient usage.

Investing time in accurate testing not only enhances the reliability of your power systems but also maximizes the return on investment in your LiFePO4 prismatic cells. Through diligent testing and analysis, you can achieve superior performance and extend the life of your batteries significantly.
