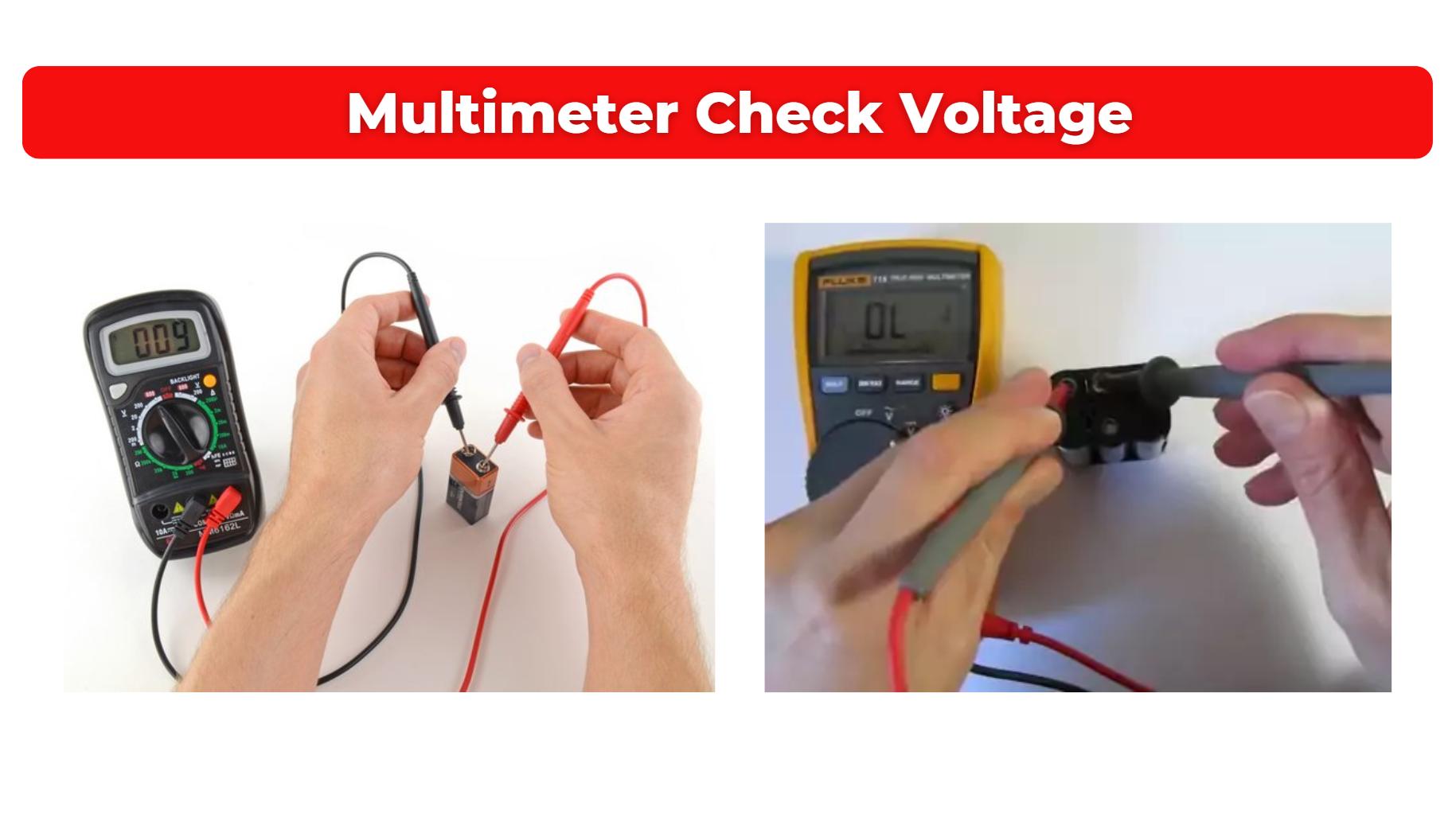

Checking voltage using a multimeter is essential for diagnosing electrical systems accurately. To do this, you need to set your multimeter correctly, choose between AC or DC settings, and place the probes appropriately to obtain accurate readings.
What Is a Multimeter and Its Uses in Voltage Testing?
A multimeter is an electronic measuring instrument that can measure voltage, current, and resistance. In voltage testing, it allows users to assess both AC and DC voltages across various components in electrical circuits.
| Function | Measurement Type |
|---|---|
| Volts (AC) | Alternating Current |
| Volts (DC) | Direct Current |
| Amps | Current Flow |
| Ohms | Resistance |
How Do You Set Up a Multimeter for Voltage Measurement?
To set up your multimeter:
- Turn the dial to select either AC or DC voltage.
- Insert the black probe into the COM port.
- Insert the red probe into the VΩmA port.
- If applicable, select an appropriate voltage range based on expected measurements.

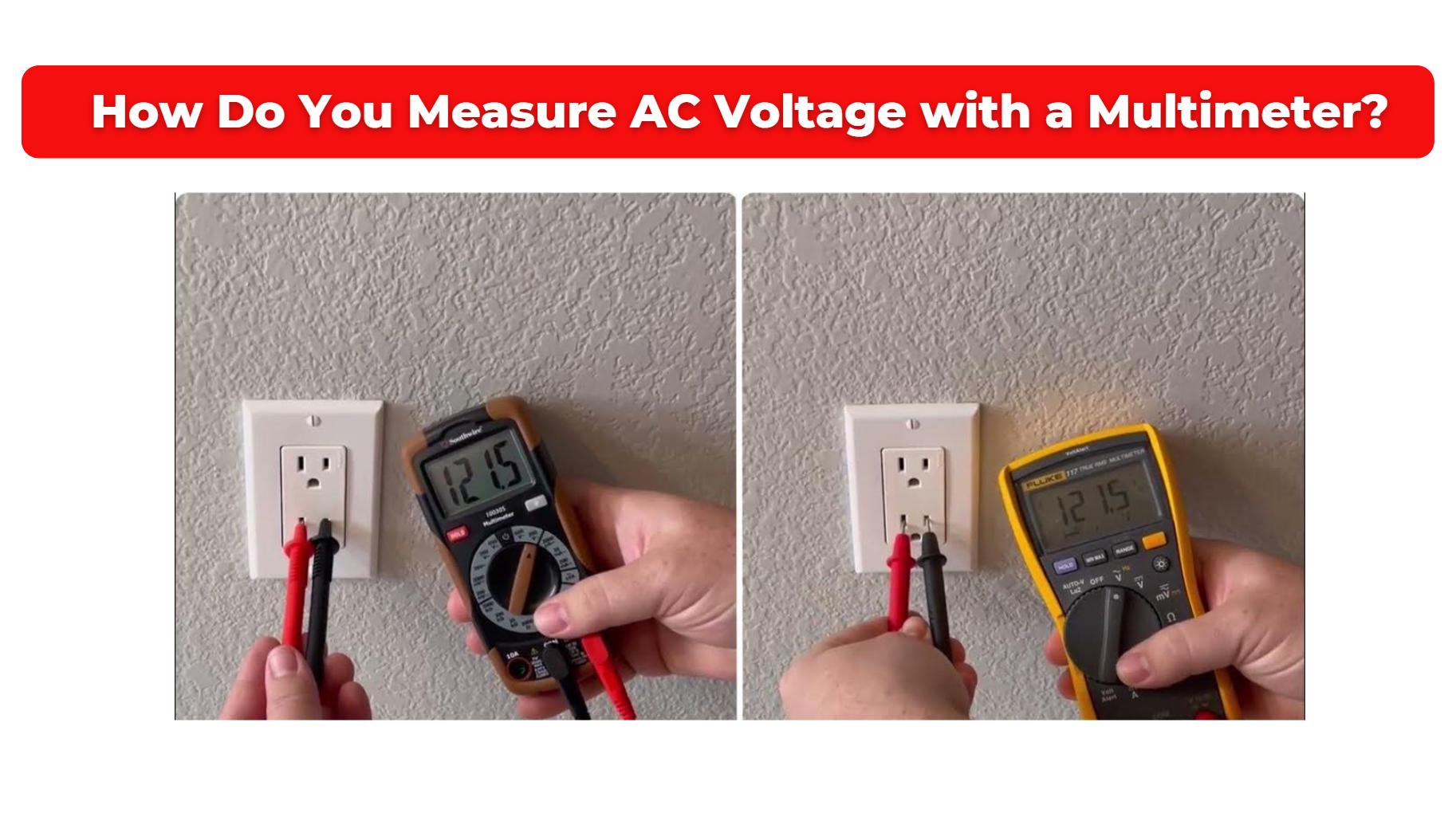

How Do You Measure AC Voltage with a Multimeter?
To measure AC voltage:
- Ensure your multimeter is set to AC voltage mode.
- Connect the black probe to ground or neutral.
- Touch the red probe to the live wire or terminal.
- Read the measurement displayed on your multimeter.
| Step | Action |
|---|---|
| 1 | Set multimeter to AC mode |
| 2 | Connect black probe to ground |
| 3 | Touch red probe to live wire |
| 4 | Read measurement |
How Do You Measure DC Voltage with a Multimeter?
To measure DC voltage:
- Set your multimeter to DC voltage mode.
- Connect the black probe to the negative terminal.
- Touch the red probe to the positive terminal.
- Observe and record the reading on your multimeter.
How Can You Ensure Accurate Measurements with a Multimeter?
To ensure accuracy:
- Always start at the highest voltage range if unsure.
- Make sure probes are securely connected.
- Avoid touching metal parts of probes during measurement.
- Regularly calibrate your multimeter according to manufacturer instructions.
When Should You Replace Your Multimeter Probes?
Replace your multimeter probes when:
- They show visible signs of wear or damage.
- The insulation is frayed or broken.
- Measurements become inconsistent or inaccurate despite proper setup.
Where Can You Find Additional Resources for Learning About Multimeters?
Additional resources can be found through:
- Manufacturer websites offering manuals and tutorials.
- Online forums dedicated to electronics and DIY projects.
- Educational platforms providing courses on electrical measurements.
Expert Views
“Understanding how to check voltage accurately using a multimeter is crucial for anyone working with electrical systems, as it ensures safety and efficiency in diagnosing issues.” — Expert from Redway.
Conclusion
Checking voltage with a multimeter is an essential skill that enhances safety and accuracy in electrical work. By following proper setup procedures and measurement techniques, users can effectively diagnose electrical systems and ensure optimal performance.
FAQ Section
- What is the difference between measuring AC and DC voltage?
AC voltage alternates direction periodically, while DC voltage flows in one direction consistently. - How do I know which setting to use on my multimeter?
Check whether you are measuring alternating current (AC) or direct current (DC) based on your circuit requirements before setting your multimeter. - Why is it important to calibrate my multimeter?
Calibration ensures that your multimeter provides accurate readings, which is critical for reliable measurements in electrical work.
