To determine the number of panels needed to charge a 72v 200Ah battery, consider the battery capacity, peak sun hours, and solar panel efficiency. First, calculate the required wattage of the solar panel system using the formula: size of solar panel system (W) = battery capacity (Wh) / sunlight hours (h). Then, divide the size of the solar panel system by the power produced by a solar panel to determine the number of panels needed. For example, for a 24v 200Ah battery, you may need four 120W solar panels. Adjust the size and number of panels based on your specific circumstances and consider factors such as solar charge controller compatibility and seasonal variations in sunlight intensity.
When configuring a solar power system, determining the correct number of panels needed to efficiently charge a 72V 200Ah battery is crucial. This task involves an understanding of the battery’s capacity, solar panel output, peak sun hours, and other important factors. In this article, we will walk you through the detailed steps required to calculate the ideal number of solar panels for your system, ensuring optimal performance and longevity of your battery.
To determine how many solar panels are needed for a 72V 200Ah battery storing about 14,400Wh, first estimate your daily energy needs in watt-hours. If using 300W panels with an average of 5 hours of sunlight producing roughly 1500Wh/day each, you might need around 2 panels if your daily requirement is around 2400Wh.
Understanding the 72V 200Ah Battery

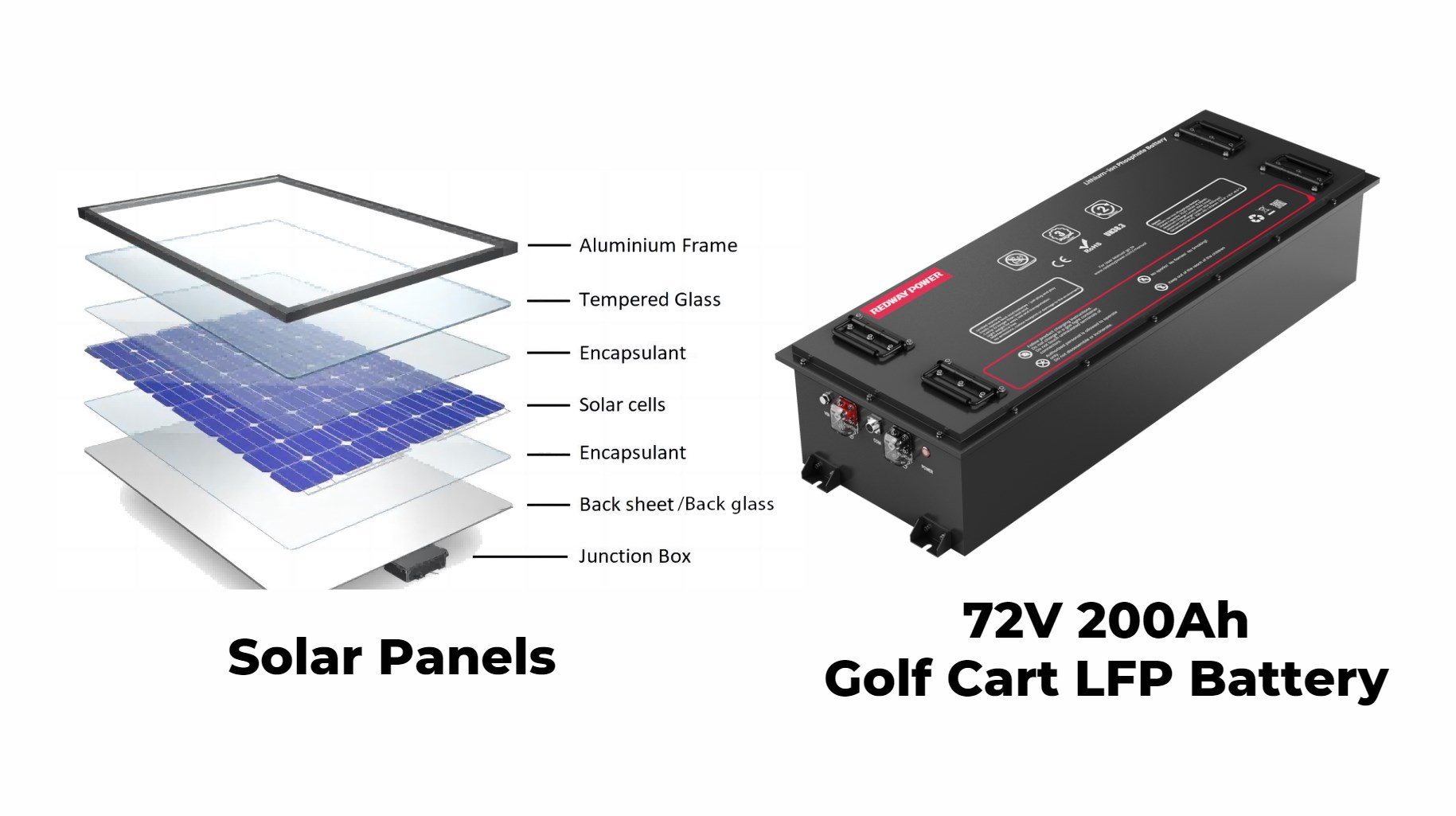

A 72V 200Ah battery, particularly one like the 72V 200Ah Golf Cart LiFePO4 Battery (S72210P), represents a significant energy storage unit. This battery type is designed to provide a nominal energy capacity of 15.36 kWh. Such batteries are commonly used in high-performance electric vehicles and various industrial applications due to their robust construction, lightweight design, and advanced safety features, including a Battery Management System (BMS) that prevents overcharging, over-discharging, and thermal issues.
Battery Specifications Breakdown
- Voltage: 72V
- Capacity: 200Ah
- Nominal Energy: 15.36 kWh
- Technology: Lithium Iron Phosphate (LiFePO4)
- Applications: Electric vehicles, industrial equipment, backup power systems
Understanding these specifications is vital, as they form the foundation for calculating the solar panel requirements.
Calculating the Required Solar Panel System Size
To determine the number of solar panels needed, we must first calculate the total energy required to charge the battery. This is done by converting the battery capacity from ampere-hours (Ah) to watt-hours (Wh), which provides a clearer picture of the energy the battery can store and, consequently, the amount of energy the solar panels need to produce.
Step 1: Calculate the Battery Capacity in Watt-Hours (Wh)
The formula to calculate the battery capacity in watt-hours is straightforward:
Battery Capacity (Wh) = Voltage (V) × Capacity (Ah)
For a 72V 200Ah battery:
Battery Capacity (Wh) = 72V × 200Ah = 14,400Wh (or 14.4 kWh)
This means the battery can store 14,400 watt-hours of energy.
Step 2: Estimate the Peak Sun Hours in Your Location
Peak sun hours are a critical factor in determining how much energy your solar panels can generate in a day. This measure varies depending on your geographical location and the season. Generally, most locations receive an average of 4 to 6 peak sun hours per day.
Step 3: Determine the Required Solar Panel System Size
Next, we calculate the size of the solar panel system required to fully charge the battery within the available peak sun hours. The formula to determine the size of the solar panel system is:
Solar Panel System Size (W) = Battery Capacity (Wh) / Peak Sun Hours (h)
Assuming an average of 5 peak sun hours:
Solar Panel System Size (W) = 14,400Wh / 5h = 2,880W
This means you need a solar panel system that can produce 2,880 watts of power during the peak sun hours to fully charge the 72V 200Ah battery in a single day.
Choosing the Right Solar Panels
The next step is to determine the number of solar panels required to meet this 2,880W system size. The number of panels needed depends on the wattage rating of the individual solar panels.
Step 4: Calculate the Number of Solar Panels Needed
Solar panels typically come in various wattages, with 300W, 350W, and 400W panels being quite common.
To calculate the number of panels, use the formula:
Number of Panels = Solar Panel System Size (W) / Wattage of Each Panel (W)
For example, using 350W solar panels:
Number of Panels = 2,880W / 350W ≈ 8.23
Since you can’t have a fraction of a panel, you would need 9 panels to ensure that the system meets the energy requirements, as rounding up provides a buffer to account for inefficiencies.
Considerations for Panel Efficiency and Losses
It’s important to note that real-world conditions such as panel orientation, shading, temperature, and inverter efficiency can affect the actual output of your solar panels. Therefore, it may be prudent to slightly oversize your system or increase the number of panels to account for these losses.
Other Key Considerations
While calculating the number of panels based on wattage and peak sun hours provides a solid foundation, other factors must be considered to optimize the system’s performance:
1. Solar Charge Controller Compatibility
The solar charge controller ensures that your solar panels charge the battery efficiently without overcharging it. For a 72V system, ensure that the charge controller is compatible with both the voltage of the battery and the solar panel array.
2. Seasonal Variations in Sunlight
The number of peak sun hours can vary significantly throughout the year. During winter months, when sunlight is less intense, your system may produce less energy. Consider this variation when sizing your solar panel system, potentially adding more panels to maintain performance year-round.
3. Expansion and Scalability
If you anticipate future expansions, such as adding more batteries or increasing the energy load, plan for a solar system that can easily be scaled up. This might involve selecting a higher-capacity charge controller or leaving space for additional solar panels.
4. Installation and Mounting
The physical space available for mounting solar panels may limit the number of panels you can install. Roof-mounted systems need to consider the roof’s orientation and tilt to maximize exposure to sunlight. Ground-mounted systems offer more flexibility but require more space.
Conclusion
Determining the correct number of solar panels for charging a 72V 200Ah battery requires careful calculation and consideration of multiple factors, including the battery’s capacity, peak sun hours, panel efficiency, and potential losses. By following the steps outlined in this guide, you can design a solar panel system that meets your energy needs, ensuring that your battery is charged efficiently and effectively throughout the year.
In summary, for a 72V 200Ah battery with an energy capacity of 14.4 kWh, you would need approximately 9 solar panels rated at 350W each, assuming 5 peak sun hours per day. However, it is always advisable to consult with a professional solar installer to fine-tune your system based on specific site conditions and energy requirements.
