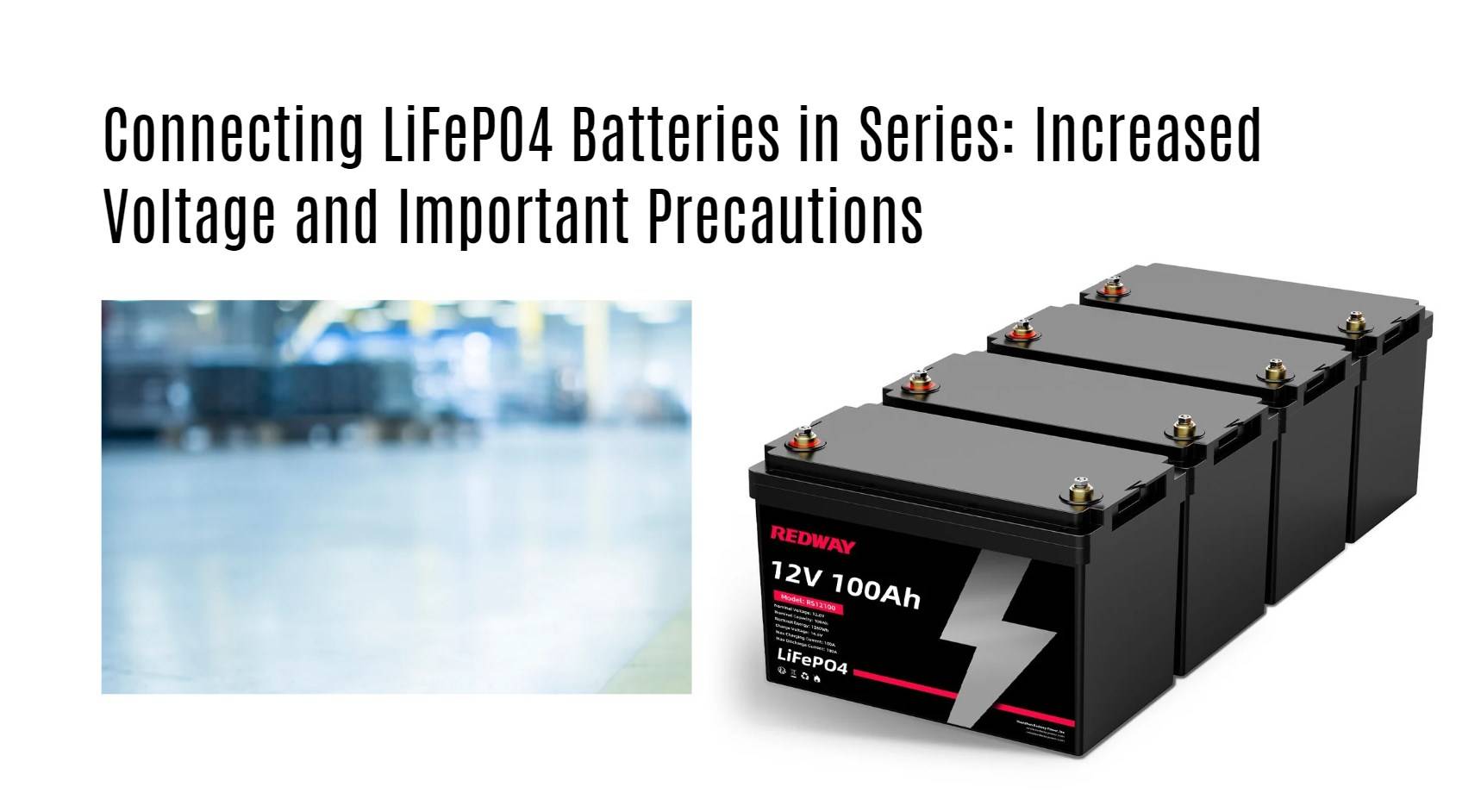

Connecting LiFePO4 batteries in series increases the overall voltage output. By connecting batteries in series, the individual voltages add up, resulting in a higher total voltage. However, it is crucial to take precautions such as ensuring battery compatibility, proper insulation, and preventing overcharging or discharging to maintain optimal performance and safety.
When LiFePO4 batteries are connected in series, the individual voltages add up, resulting in a higher total voltage output. For example, if two 3.2V batteries are connected in series, the total voltage becomes 6.4V. This increased voltage can be advantageous in applications that require higher voltages.
However, it is important to consider certain precautions when connecting LiFePO4 batteries in series. These precautions include:
Battery Compatibility: Ensure that the batteries being connected in series have the same type, capacity, and voltage ratings. This helps maintain balance and prevents any issues arising from mismatched batteries.
Proper Insulation: Use appropriate insulation materials to prevent any accidental short circuits or electrical hazards. Insulating the battery terminals and connections is essential for maintaining safety.
Prevent Overcharging or Discharging: Implement a suitable battery management system (BMS) or charging/discharging circuitry to prevent overcharging or discharging of the batteries. This helps protect the batteries from damage and ensures their longevity.
Connecting batteries in series offers benefits such as increased voltage, enhanced power capacity, flexibility in voltage requirements, and simplified charging. When batteries are connected in series, the individual voltages add up, allowing for higher voltage output. This provides flexibility in meeting specific voltage needs and supports devices with higher power demands. Additionally, charging the batteries as a single unit simplifies the charging process.
Connecting batteries in series provides benefits that include increased voltage, enhanced power capacity, flexibility in voltage requirements, and simplified charging.
Increased Voltage: When batteries are connected in series, the individual voltages add up, resulting in a higher total voltage output. This is advantageous in applications that require higher voltages to operate.
Enhanced Power Capacity: By connecting batteries in series, the power capacity of the battery bank increases. This means that more power can be delivered, supporting devices with higher power demands.
Flexibility in Voltage Requirements: Connecting batteries in series allows for customization of the battery bank to match specific voltage needs. This flexibility is useful in applications where different voltage levels are required.
Simplified Charging: When batteries are connected in series, they can be charged as a single unit. This simplifies the charging process, as all the batteries receive an equal charge, ensuring balanced performance.
Steps to safely connect batteries in series
To safely connect batteries in series, follow these steps: gather the batteries with the same voltage rating and capacity, inspect them for damage, clean the terminals, connect the positive and negative terminals in series, insulate the connections, and test the voltage. These steps ensure secure connections, prevent short circuits, and maintain safety when connecting batteries in series.
To safely connect batteries in series, follow these steps:
Gather the batteries: Collect batteries with the same voltage rating and capacity. This ensures balance and optimal performance.
Inspect the batteries: Check each battery for damage, leaks, or corrosion. Discard any damaged batteries to maintain safety.
Prepare the connections: Clean the battery terminals and ensure they are free from dirt or corrosion. Use appropriate tools for secure connections.
Connect the terminals: Connect the positive terminal of one battery to the negative terminal of the next battery. Repeat until all batteries are connected in series.
Insulate the connections: Cover the connections with insulating materials like electrical tape or heat shrink tubing to prevent short circuits.
Test the voltage: Double-check the connections and use a multimeter to verify the voltage across the series connection.
Important precautions to consider
When connecting LiFePO4 batteries in series, it is important to consider precautions such as ensuring battery compatibility, proper insulation, preventing overcharging or discharging, temperature considerations, and regular monitoring. These precautions help maintain safety, prevent damage, and ensure optimal performance of the battery bank.
To ensure safety and optimal performance when connecting LiFePO4 batteries in series, it is important to consider the following precautions:
Battery Compatibility: Ensure that the LiFePO4 batteries being connected in series have the same type, capacity, and voltage ratings. This ensures balance and prevents any issues that may arise from using mismatched batteries.
Proper Insulation: Use appropriate insulation materials to insulate the battery terminals and connections. This helps prevent accidental short circuits and electrical hazards, ensuring safety during operation.
Overcharging and Discharging: Implement a suitable battery management system (BMS) or charging/discharging circuitry to prevent overcharging or discharging of the batteries. This protects the batteries from damage and helps maintain their longevity.
Temperature Considerations: LiFePO4 batteries are sensitive to extreme temperatures. Avoid exposing the batteries to high temperatures, as it can lead to reduced performance and potential safety risks. Keep the batteries within the recommended temperature range for optimal operation.
Monitoring and Maintenance: Regularly monitor the battery bank and perform maintenance checks. This includes checking for any signs of damage, maintaining proper insulation, and addressing any issues promptly. Regular maintenance ensures the safety and longevity of the battery bank.

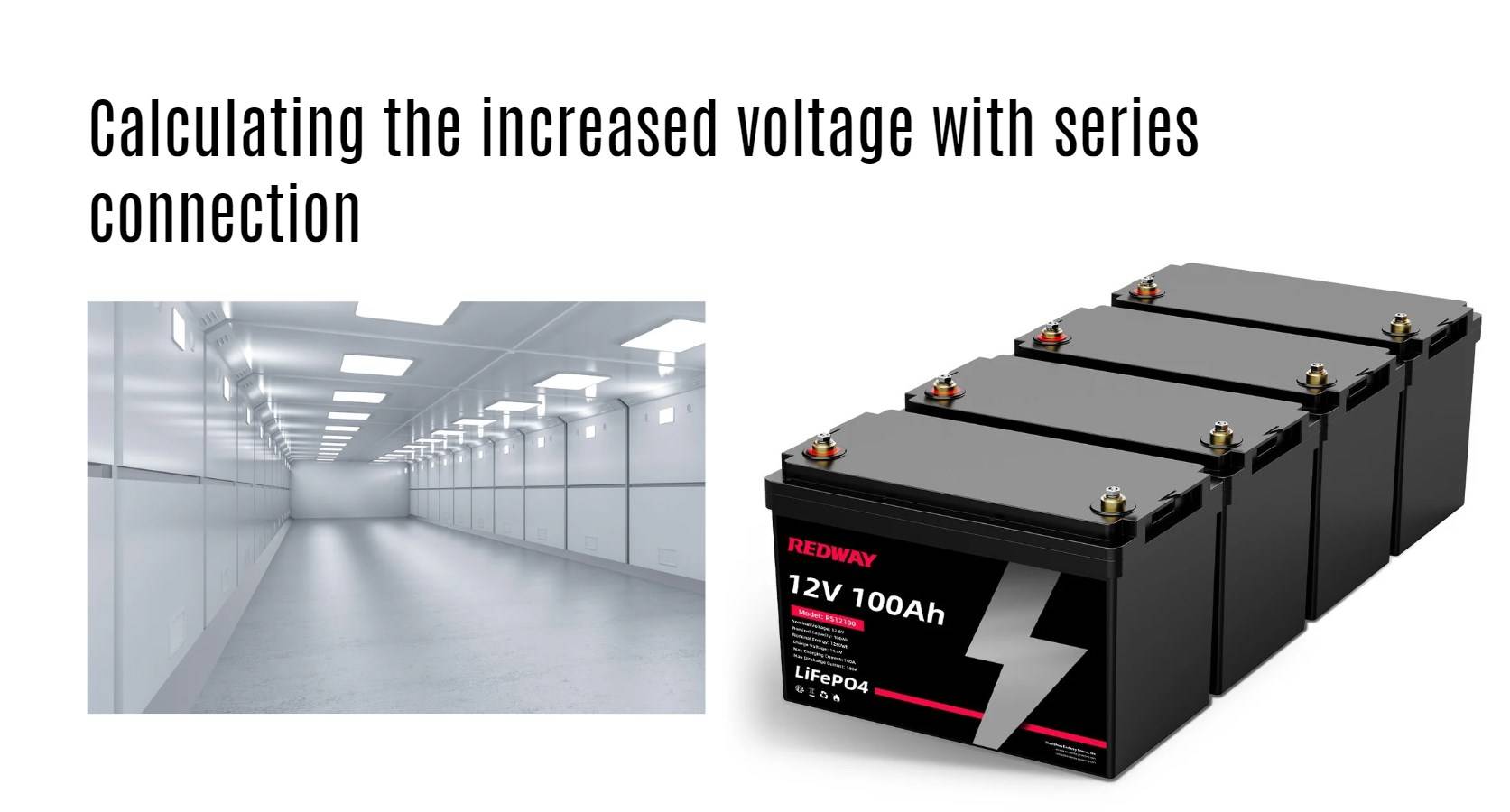

Calculating the increased voltage with series connection
Calculating the increased voltage with a series connection involves adding up the individual voltages of each battery. In a series circuit, the voltage is additive, meaning that the total voltage is the sum of the individual voltages. Ohm’s law (V = I * R) can be used to calculate the voltage if the resistance is known. If the resistance is unknown, the Kirchhoff loop rule helps calculate the voltage across each circuit element.
To calculate the voltage in a series circuit, you can use Ohm’s law (V = I * R) if the resistance is known. Ohm’s law states that the voltage (V) is equal to the current (I) multiplied by the resistance (R). By knowing the current and resistance values, you can calculate the voltage.
If the resistance is unknown, you can use the Kirchhoff loop rule to calculate the voltage across each circuit element. The Kirchhoff loop rule states that the sum of the voltage drops around any closed loop in a circuit is equal to zero. By applying this rule, you can determine the voltage across each battery in the series connection.
Applications and uses for series connected LiFePO4 batteries
Series connected LiFePO4 batteries find applications in electric vehicles, renewable energy storage, off-grid power systems, backup power, and marine/RV applications. These batteries offer high energy density, long cycle life, and safety features, making them ideal for powering EVs, storing renewable energy, providing off-grid power, and serving as reliable backup power sources.
LiFePO4 batteries connected in series find applications in various industries and systems:
Electric Vehicles (EVs): LiFePO4 batteries are commonly used in electric vehicles due to their high energy density, long cycle life, and safety features. Connecting LiFePO4 batteries in series allows for increased voltage, which is essential for powering electric vehicles.
Renewable Energy Storage: Series connected LiFePO4 batteries are used in renewable energy systems, such as solar or wind power installations. These batteries can store energy generated from renewable sources and provide a stable power supply when needed.
Off-Grid Power Systems: LiFePO4 batteries connected in series are ideal for off-grid power systems, such as cabins, RVs, or remote locations. They provide a reliable and efficient energy storage solution, ensuring continuous power supply in areas without access to the grid.
Backup Power: Series connected LiFePO4 batteries are used for backup power applications, providing a reliable source of energy during power outages or emergencies. They can be connected to inverters to convert stored energy into usable AC power.
Marine and RV Applications: LiFePO4 batteries connected in series are suitable for marine and RV applications due to their lightweight design, high energy density, and long cycle life. They provide a dependable power source for various onboard systems.
Conclusion
LiFePO4 batteries are versatile and reliable power sources that can be enhanced by connecting them in series. By understanding the benefits, steps to safely connect them, important precautions to consider, calculating increased voltage, and various applications for series connected LiFePO4 batteries, you can optimize your power supply for a wide range of uses.
Whether you’re looking to increase voltage for a specific application or simply maximize the capacity of your battery system, connecting LiFePO4 batteries in series offers a practical solution. Just remember to follow proper safety protocols and calculations to ensure efficient operation and longevity of your battery setup.
With the right knowledge and precautions in place, harnessing the power of series connected LiFePO4 batteries can open up new possibilities for powering your devices efficiently and effectively. Explore the potential of this setup in your projects and enjoy the benefits of increased voltage with peace of mind knowing you’ve taken all necessary measures for a successful connection.
Connecting batteries in series increases the total voltage while keeping the capacity the same. For example, if you connect two 12V 100Ah LiFePO4 batteries in series, the output voltage will be 24V and the total capacity will still be 100Ah.
